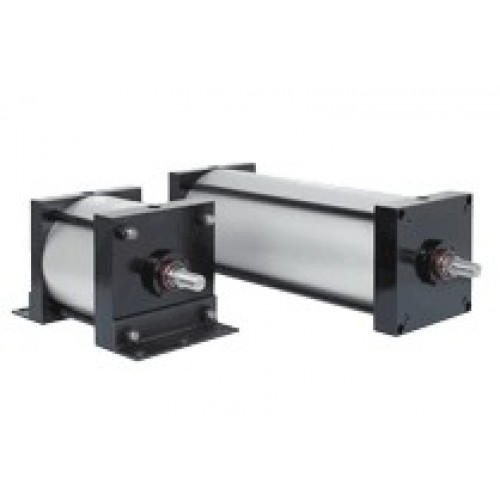

Numatics Large Bore A Series NFPA Interchangeable Cylinder

The Large Bore A Series is an NFPA Interchangeable cylinder line that is designed and built to excel in the most demanding applications. The Large Bore A Series encompasses many of the proven design features of the A Series.

Standard Specifications:

Meets NFPA specifications
Bore sizes from 8" through 14"
Piston rod diameters from 1-3/8" through 2-1/2"
Nominal pressure rating is 250 psi air
Standard temperature -10°F to 165° F(-23° C to 74° C)
NPTF ports
Flexible port and cushion location
Multitude of mounting options

Features:

Head and cap are machined from (6061-T6) solid aluminum bar and anodized for corrosion resistance. A recess at the piston mating surface allows the air to work on a larger effective piston area for faster breakaway.
The longer bronze rod bushing provides a maximum load bearing support. The material offers an excellent bearing surface with hard chrome plated piston rod. A graphite filled cast iron rod bushing is standard on 8" bore.
The carboxilated nitrile with PTFE compound is used in the rod seal. The lip seal design insures proper sealing and long life for no lube added service.
Rod wiper construction is a highly durable polyurethane.
The bushing retainer allows cartridge removal without disassembly.
Tie rods are 100,000 psi minimum yield steel for maximum holding power. Tie rod threads are rolled for strength and engagement.
Piston seals are carboxilated nitrile with PTFE compound for no lube added service.
The extra wide wear bard is provided to support maximum loading. The solid aluminum alloy piston is strong and lightweight. A nylon insert nut is used to attach the piston to the rod. (Nut is not standard on 8" bore).
The floating cushion design gives the fastest stroke reversal possible by providing instantaneous full flow to piston. Each cushion has a flush, retained adjustment needle.

Centerline Mounts
X0 Mount X2 Mount X3 Mount
X1 Mount
Basic No Mount Extended Tie Rods ¨C Cap En Extended Tie Rods ¨C Head En
Extended Tie Rods ¨C Both End
DA MountE3 Mount E4 Mount
Double Rod EndHead Square Mount Cap Square Mount
Pivot Mounts
P3 Mount
P1 Mount
Fixed Eye
Fixed Clevis
T1 Mount
T2 Mount T4 Mount
Head Trunnion
Intermediate Trunnion
Cap Trunnion
Foot Mounts
S2 Mount S4 Mount
S1 Mount
Side Lugs Bottom Tapped
Angle Mount

Accessories
Clevis Bracket
Part No. CB CD CW DD E F FL LR M MR R
A500-003 1.500 1.000 0.750 5/8-18 4.500 0.750 2.250 1.250 1.000 1.125 3.250
N29-1006 2.000 1.375 1.000 5/8-18 5.000 0.875 3.000 1.875 1.375 1.750 3.810
N29-1005 2.500 1.750 1.250 7/8-14 6.500 0.875 3.125 2.000 1.750 1.875 4.950
N29-1004 2.500 2.000 1.250 1-14 7.500 1.000 3.500 2.125 2.000 2.125 5.750
N29-1002 3.000 2.500 1.500 1 1/8-12 8.500 1.000 4.000 2.625 2.500 2.500 6.590
Eye Bracket
Part No. CB CD DD E F FL LR M MR R
A500-003 1.500 1.000 0.656 4.500 0.750 2.250 1.500 1.000 1.250 3.250
A500-104 2.000 1.375 0.656 5.000 0.875 3.000 2.125 1.375 1.625 3.810
A500-105 2.500 1.750 0.906 6.500 0.875 3.125 2.250 1.750 2.125 4.950
A500-106 2.500 2.000 1.062 7.500 1.000 3.500 2.500 2.000 2.438 5.750
N30-1004 3.000 2.500 1.188 8.500 1.000 4.000 3.000 2.500 3.000 6.590
Rod Clevis
Part No. A CB CD CE CW CX ER KK
A500-305 1.625 1.500 1.000 3.125 0.750 1.500 1.000 1-14
A500-306 2.000 2.000 1.375 4.125 1.000 2.000 1.375 1 1/4-12
A500-307 2.250 2.500 1.750 4.500 1.250 2.375 1.750 1 1/2-12
N27-1001 2.250 2.500 1.750 4.500 1.250 2.375 1.750 1 3/4-12
A500-308 3.000 2.500 2.000 5.500 1.250 2.938 2.000 1 7/8-12
A500-309 3.000 3.000 2.000 6.500 1.500 3.500 2.500 2 1/4-12
Rod Eye
Part No. A CA CB CD ER KK
A500-204 1.625 2.813 1.500 1.000 1.188 1-14
A500-205 2.000 3.438 2.000 1.375 1.563 1 1/4-12
A500-206 2.250 4.000 2.500 1.750 2.000 1 1/2-12
N26-1004 2.250 4.000 2.500 1.750 2.000 1 3/4-12
N26-1003 3.000 5.000 2.500 2.000 2.500 1 7/8-12
N26-1002 3.500 5.813 3.000 2.500 2.813 2 1/4-12
Spherical Eye Bracket
Part No. CB CD DD E F FL LR M MR R
N30-1005 1.000 1.000 0.656 4.500 0.750 2.250 1.500 1.375 1.375 3.250
N30-1006 1.375 1.375 0.656 5.000 0.875 3.000 2.125 2.000 2.000 3.810
N30-1003 1.500 1.750 0.906 6.500 0.875 3.125 2.250 2.125 2.125 4.940
N30-1007 1.750 2.000 1.032 7.500 1.000 3.500 2.500 2.375 2.375 5.750
Rod Stud
Part No. 2A KK
A500-T01 3.250 1-14
N82-1009 4.000 1 1/4-12
N82-1010 1.500 1 1/2-12
N82-1011 6.000 1 7/8-12
Pivot Pin
Part No. CD CL
A500-403 1.000 3.125
A500-404 1.375 4.125
A500-405 1.750 5.125
A500-406 2.000 6.125
N131-1003 2.500 6.188

Large Bore A Series World Switch Hall Effect Part Numbers
Electrical Operating Switching Voltage NEMA IP Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
SH6-031 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-032 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-021 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-022 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C

Large Bore A Series World Switch Reed Switch Part Numbers
Electrical Operating Switching Voltage NEMA IP Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
0.025 Amps Max.
SR6-002 Flying Lead AC/DC REED Normally Open 5-120 VAC/DC 3 Watts Max. 3.5 Volts NEMA 6 -25o to +75o C
0.001 Amps Min.
0.5 Amps Max.
SR6-004 Flying Lead AC/DC REED Normally Open 5-120 VAC/DC 10 Watts Max. 3.0 Volts NEMA 6 -25o to +75o C
0.005 Amps Min.
5-50 VAC 0.025 Amps Max.
SR6-022 M8 Connector AC/DC REED Normally Open 12 Watts Max. .5 Volts NEMA 6 -25o to +75o C
5-60 VDC 0.001 Amps Min.
5-50 VAC 0.5 Amps Max.
SR6-024 M8 Connector AC/DC REED Normally Open 10 Watts Max. 3.0 Volts NEMA 6 -25o to +75o C
5-60 VDC 0.005 Amps Min.
