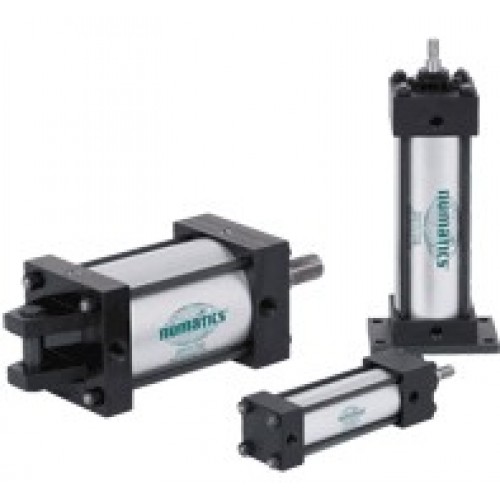

Numatics A Series NFPA Interchangeable Cylinder

The A Series is an aluminum NFPA Interchangeable cylinder line that is designed and built to excel in the most demanding applications. The A Series encompasses many value-added features such as an extra long graphite filled cast iron rod bushing and a standard oversized wear band that is located on the rear of the piston. Additionally, the A Series includes the well-proven "T" Seal piston seal configuration made from carboxilated nitrile with self-lubricating PTFE® compound. These are just a sample of the features that make the A Series the Superior NFPA Interchangeable air cylinder line.

Standard Specifications:

Meets NFPA specifications
Bore sizes from 1-1/2" through 6" ( 8" through 14" are Large Bore A Series)
Piston rod diameters from 5/8" to 1-3/4" (1-3/8" through 2-1/2" for Large Bore A Series)
Nominal pressure rating is 250 psi air
Standard temperature -10°F to 165° F(-23° C to 74° C)
NPTF ports
Flexible port and cushion location
Multitude of mounting options

Features:

The file hard (60 RC) high strength aluminum alloy tube provides a smooth corrosion free sealing surface and excellent abrasion resistance
Head and cap are machined from (6061-T6) solid aluminum bar and anodized for corrosion resistance. A recess at the piston mating surface allows the air to work on a larger effective piston area for faster breakaway
The longer cast iron rod bushing provides maximum load bearing support. The graphite-filled material offers the best bearing surface with hard chrome plated piston rod.
The carboxilated nitrile with PTFE compound is used in the rod seal. The rounded lip design insures proper sealing and long life for no lube added service.
Rod wiper construction is a highly durable polyurethane.
High strength steel (100,000 psi minimum yield) piston rod has a ground, polished and hard chrome plated surface providing maximum life of bushing and seals.
The bushing retainer allows cartridge removal without disassembly.
Tie rods are 100,000 psi minimum yield steel for maximum holding power. Tie rod threads are rolled for strength and engagement.
The extra wide wear band is located at the furthest point from the rod bushing to support maximum loading.
The solid aluminum alloy piston is strong and lightweight.
The floating cushion design gives the fastest stroke reversal possible by providing instantaneous full flow to piston. Each cushion has a flush, retained adjustment needle.
The tube seals are compression type and reusable.
Improved port design allows increased flow rate.

Accessories Guide
Rod Thread Rod Clevis Eye Bracket Pivot Pin Rod Eye Clevis Bracket Bore
7/16-20 A500-301 A500-101 A500-401 A500-201 A500-001 1 1/2, 2, 2 1/2
1/2-20 A500-302 A500-101 A500-401 A500-202 A500-001 1 1/2, 2, 2 1/2
3/4-16 A500-303 A500-102 A500-402 A500-203 A500-002 3 1/4, 4, 5
7/8-14 A500-304 A500-102 A500-403 (R) (R) (R)
1-14 A500-305 A500-103 A500-403 A500-204 A500-003 6
1 1/4-12 A500-306 A500-104 A500-404 A500-205 (R) (R)
1 1/2-12 A500-307 A500-105 A500-405 A500-206 (R) (R)

Standard Couplers
Part Number
Maximum
A B C D E F G H
Pull Load
Standard Nickel
A500-603 B500-603 7/16-20 1 1/4 2 1/2 3/4 5/8 9/16 1 1/8 2,535
A500-604 B500-604 1/2-20 1 1/4 2 1/2 3/4 5/8 9/16 1 1/8 3,500
A500-605 B500-605 5/8-18 1 1/4 2 1/2 3/4 5/8 1/2 1 1/8 4,750
A500-606 B500-606 3/4-16 1 3/4 2 5/16 5/16 1 1/8 31/32 7/8 1 1/2 8,750
A500-607 B500-607 7/8-14 1 3/4 2 5/16 5/16 1 1/8 31/32 7/8 1 1/2 9,750
A500-608 B500-608 1-14 2 1/2 2 15/16 1/2 1 5/8 1 3/8 1 1/4 2 1/4 16,125
A500-609 B500-609 1 1/4-12 2 1/2 2 15/16 1/2 1 5/8 1 3/8 1 1/4 2 1/4 19,600
A500-610 N35-1004 1 1/2-12 3 1/4 4 3/8 13/16 2 1/4 1 3/8 1 1/2 3 34,000

series World Switch Bracket
Cylinders Bore Part Number
A series Tie Rod 1 1/2" SB6-K01
A series Tie Rod 2"-2 1/2" SB6-L01
A series Tie Rod 3 1/4"-4" SB6-P01
A series Tie Rod 5"-6" SB6-T01
A series Tie Rod 8" SB6-W01
A series Pro?le 1 1/2"-3 1/4" Direct Fit
A Series World Switch Hall Effect Part Numbers
Electrical Operating Switching Voltage NEMA IP Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
SH6-031 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-032 Flying Lead DC PNP Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-021 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C
SH6-022 M8 Connector DC NPN Normally Open 6-24 VDC 0.3 Amps Max. 7.2 Watts Max. .5 Volts NEMA 6 -25o to +75o C

A Series World Switch Reed Switch Part Numbers
Electrical Operating Switching Voltage NEMA IP Temperature
P/N Switch Style Output Current Rating
Design Voltage Power Drop Rating Rating
0.025 Amps Max.
SR6-002 Flying Lead AC/DC REED Normally Open 5-120 VAC/DC 3 Watts Max. 3.5 Volts NEMA 6 -25o to +75o C
0.001 Amps Min.
0.5 Amps Max.
SR6-004 Flying Lead AC/DC REED Normally Open 5-120 VAC/DC 10 Watts Max. 3.0 Volts NEMA 6 -25o to +75o C
0.005 Amps Min.
5-50 VAC 0.025 Amps Max.
SR6-022 M8 Connector AC/DC REED Normally Open 3 Watts Max. .5 Volts NEMA 6 -25o to +75o C
5-60 VDC 0.001 Amps Min.
5-50 VAC 0.5 Amps Max.
SR6-024 M8 Connector AC/DC REED Normally Open 10 Watts Max. 3.0 Volts NEMA 6 -25o to +75o C
