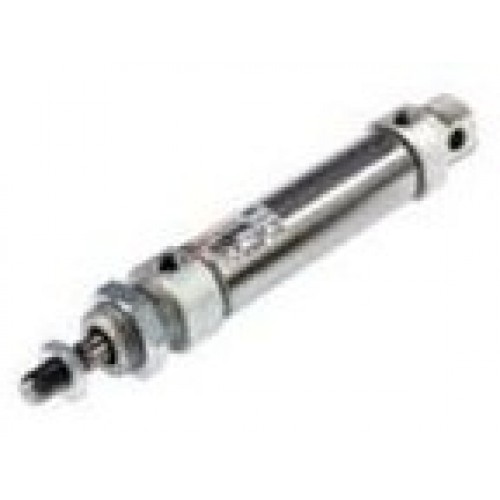

Norgren Martonair Roundline double acting cylinder ISO Range 16mm Bore Cylinders & Mountings
- Norgren RM/8016/M Cylinders
- 16mm Bore Double Acting
- Magnetic Piston as standard
- M5 Port Size
- Dimensions conform to ISO 6432
- Barrel & piston rod stainless steel
- End caps anodised aluminium alloy.
RM/8016/M/25
Norgren RM/8016/M/25
Double Acting Cylinder
16mm Bore
25mm Stroke
Magnetic
M5 Ports
RM/8016/M/40
Norgren RM/8016/M/40
Double Acting Cylinder
16mm Bore
40mm Stroke
Magnetic
M5 Ports
RM/8016/M/50
Norgren RM/8016/M/50
Double Acting Cylinder
16mm Bore
50mm Stroke
Magnetic
M5 Ports
RM/8016/M/80
Norgren RM/8016/M/80
Double Acting Cylinder
16mm Bore
80mm Stroke
Magnetic
M5 Ports
M/P19389
Norgren M/P19389
Single foot mounting bracket
Suits 12mm & 16mm bore cylinders
QM/8012/24
Norgren QM/8012/24
Rear Hinge Mounting
Suits both 12mm & 16mm bore cylinders
Supplied with pin
QM/8012/25
Norgren QM/8012/25
Piston Rod Clevis Mounting
Suits both 12mm & 16mm bore cylinders
M6 Female Thread
Supplied with pin
QM/8012/32
Norgren QM/8012/32
Spherical Piston Rod Eye Mounting
Suits both 12mm & 16mm bore cylinders
M6 Female Thread
6mm Diameter Hole
M/50/LSU/2V
Norgren reed switch
*** 2 METRE CABLE ***
Normally open
LED Indicator
Fits into PRA/182000 range of cylinder profile bodies, with no need for separate clip.
Also fits round bodied cylinders with appropriate mounting bracket.
M/50/LSU/5V
Norgren reed switch
** 5 METRE CABLE **
Normally open
LED Indicator
Fits into PRA/182000 range of cylinder profile bodies, with no need for separate clip.
Also suits round bodied cylinders with the appropriate mounting clip.
M/50/LXU/5V
Norgren reed switch
ATEX II 3D T 120 C IP67 X
*** 5 METRE CABLE ***
Normally open
Fits into PRA/182000 range of cylinder profile bodies, with no need for separate clip.
Also fits round bodied cylinders with appropriate mounting bracket.
QM/33/016/22
