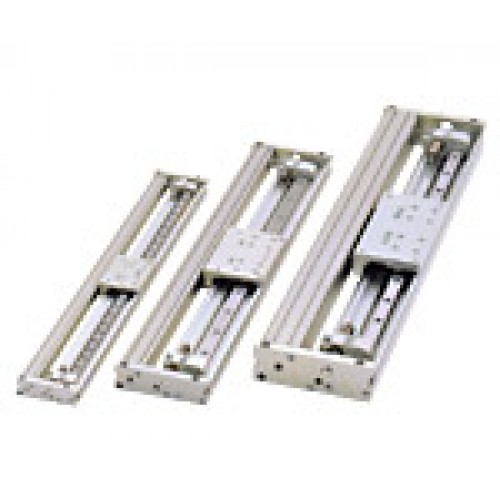

Koganei cylinder side slide Slit Type Rodless Cylinder ORS Series

･Table height is designed extremely low to facilitate design of thin-type equipment.
･Shock absorber units are standard equipment.
･Direct mounting at the end plate and mounting the T slots on the bottom improves the mounting flexibility.

Bore mm	Stroke mm	Port
10-40	150-1000	M5.Rc1/8 Rc1/4

 High Rigidity
Maximum load capacity : 600N [135lbf.] (ORS32,40/MRS32,40)
Pitching moment : 60N°§m [44.3ft°§lbf] (ORS32,40/MRS32,4
Shock Absorber Units are Standard Equipment.
Since shock absorber unit provides positioning of the end of the
stroke, it enhances absorbing capacity to the maximum extent.
The shock absorber does not protrude beyond the end plate.
Moreover, moving the shock absorber unit is all that is required
to adjust the stroke all along its range.
Plus
Specified Stroke         10mm [0.394in.]
Since the shock absorber can be used for fine stroke
adjustment of 5mm [0.197in.] for one side, it totally offers a10mm [0.394in.] margin in regards to the specified stroke.
Heli-serts in the Table°Os Mountin
Threads are Optional.
Versatile Mounting Direction
More versatile mounting, with direct mounting at the end
plate, or mounting with T-slots on the bottom surface.
While mounting dimensions are the same for ORS
(                           )
and MRS, the table height varies.
Slit Type Rodless Cylinders
ORSseries
Uses Embedded Type Sensor Switch
Easily and clearly pulling out lead wires from the
grooves on the body.

Specifications
Bore size
10 [0.394]16 [0.630] 25 [0.984] 40 [1.575]20 [0.787] 32 [1.260]
mm [in.]
Item
Operation type
Double acting type
Media
Air
Operating pressure rangeMPa [psi.]
0.150.8 [22116]
0.250.7 [36102]
Proof pressure MPa [psi.]
1.2 [174]
1.05 [152]
Operating temperature range°,C [°,
060 [32140]
1501000 [5.939.4]
Note2
Operating speed rangemm/s [in./sec.]
1001000 [3.939.4] (2000 [78.7])
Note2
(2000 [78.7])
Shock absorber (Standard equipment for both ends)
Cushion
Not required (If lubrication is required, use Turbine Oil Class 1 [ISO VG32] or equivalent, or lithium soap-based grease.)
Cylinder portion
Lubrication
Required (Lithium soap-based grease)
Guide portion0.05 [0.002]
Repeatabilitymm [in.]
Note1
0.3 [0.012]
mm [in.]
Parallelism
Adjustable over the entire stroke (Specified stroke 10mm [0.394])
Stroke adjusting rangemm [in.]
130 [29.2]
300 [67.4] 600 [135]
Maximum load capacityN [lbf.]
M50.8
Rc1/8 Rc1/4
Port size

Code
Model
KSHJ10 10-01,KSHJ10 10-02 (For  10 [0.394in.] and  16 [0.630in.])
KSHJ14 12-01,KSHJ14 12-02 (For  20 [0.787in.] and  25 [0.984in.])
KSHJ20 16-01,KSHJ20 16-02 (For  32 [1.260in.] and  40 [1.575in.])

Moment and
Max. load
Model
ORS10, MRS10
ORS16, MRS16
ORS20, MRS20
ORS25, MRS25
ORS32, MRS32
ORS40, MRS40
