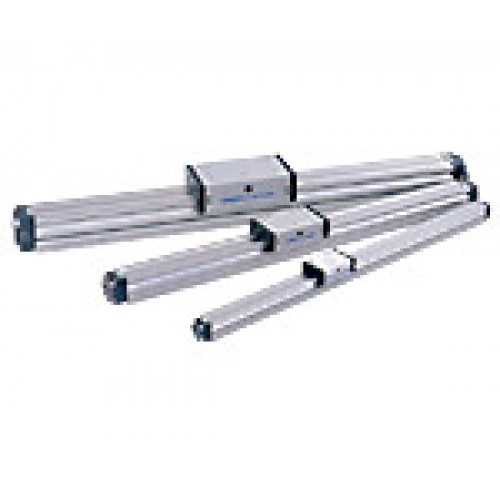

Koganei cylinder side slide Slit Type Rodless Cylinder ORK Series
･Roller bearings of cam follower guide achieve smooth operation.
･Adjusting is simple because the cam follower shaft is attached directly to the carriage.
･Large rail width maintains high accuracy for a long period.
Slit Type Rodless Cylinders with Cam-follower Guides
SERIES
The ORK series with cam-follower
guides adds a rolling bearing function
to the slit type rodless cylinders
with guides. A heavy load and a
large bending moment can be
applied directly to achieve smooth
operation.
SMOOTH OPERATION WITHOUT INSTALLING A GUIDE
Because the slider and the cylinder body act
as the guide, the rolling angle of the slider
(rolling angle of the slider at applying the
maximum rolling moment) becomes 1/2 of
that of the ORGA series. Moreover, the rolling
bearing of the cam-follower guide makes for
smooth operation.
LONG STROKE AND COMPACT PIPING
As for the maximum stroke, 16 [0.630in.]
can be made up to 3000mm [118.1in.], and 20 [0.787in.]50 [1.969in.] up to 5000mm
[196.8in.]. Moreover, one-direction piping and
both-side piping can be selected according to
the installation, and with these cylinders, it is
possible to make equipment and machine
designs compact.
STROKE ADJUSTMENT AND HIGH SPEED
By installing a stroke adjusting bolt or shock
absorber, the stroke can be finely adjusted,
and can be used at high speeds. Also because
a magnet is installed as standard equipment
on the piston, by simply mounting a sensor
switch, it becomes a rodless cylinder with
sensors.
EASY ADJUSTMENT AND ACCURATE
The shaft of the cam-follower is mounted
directly onto the block making adjustment
easy. The wide rail width maintains long-term
precision.
Specifications
Bore size mm [in.]
16 [0.630]
20 [0.787]25 [0.984]32 [1.260]40 [1.575]50 [1.969]
Item
Operation type
Double acting type
Media
Air
Operating pressure rangeMPa [psi.]
0.150.8 [22116] 0.10.8 [15116]
Proof pressure MPa [psi.]
1.2 [174]
Operating temperature range°,C [°,
060 [32140]
Note1
Operating speed rangemm/s [in./sec.]
1002000 [3.978.7]
Cushion
Variable cushions on both sides
Cushioning stroke (one side)mm [in.]
Note2
Lubrication
Not required
Up to the full stroke and
Note3
Stroke
Up to the full stroke and fine adjustment Up to the full stroke and fine adjustment
With shock
fine adjustment
adjusting range
0(R)C20 [(R)C0.787 0(R)C30 [(R)C1.181
absorber (optional)
0(R)C15 [(R)C0.591
mm [in.]
0(R)C4 [(R)C0.157 0(R)C5 [(R)C0.197](R)C6 [(R)C0.236](R)C8 [(R)C0.315 0(R)C10 [(R)C0.394
With stroke adjusting
(One side to the
specification stroke)
bolt (optional)
(Fine adjustment at the end of the stroke only)0.0591.50.0591.5
[ ]
[ ]
1000 or less0.0390.50.0390.50.0790.0792.02.0
[ ]
[ ]
1001 3000
Stroke tolerance0.0390.0390.50.50.0982.5
[ ]
3001 50000.0390.5
Blank
No sensor switch
ZC130 Solid state typewith indicator lamp
DC1028V
ZC153 Solid state typewith indicator lamp
DC4.528V
CS5T Reed switch typewithout indicator lamp
DC528V AC85115V
CS11T Reed switch typewith indicator lamp
DC1028V
For2050
Blank
No sensor switch
ZG530 Solid state typewith indicator lamp
DC1028V
ZG553 Solid state typewith indicator lamp
DC4.528V
CS3M Reed switch typewith indicator lamp
DC1030V AC85230V
CS4M Reed switch typewith indicator lamp
DC1030V AC85115V
CS5M Reed switch typewithout indicator lamp
DC330V AC85115VFor details of the specifications, see p.1544.
Mounting brackets
Blank : No mounting bracket
L : L-type bracket (1 set with 2 brackets)
Note1
Supporting brackets
Blank : No supporting bracket
F : F-type support (1 set with 2 brackets)
Note1
Number of supporting bracket sets
1With 1 set (with 2 supporting brackets)
2With 2 sets (with 4 supporting brackets)
Shock absorber
Blank : No shock absorber
K : With -01 shock absorber (Maximum impact speed 1000mm/s, with holder)
KM : With -02 shock absorber (Maximum impact speed 2000mm/s, with holder)
Number of shock absorbers (with holder)
1With 1 shock absorber
2With 2 shock absorbers
Stroke adjusting bolt
Blank : No stroke adjusting bolt
S : With stroke adjusting bolt (with holder)
Additional PartsOrder codes for L-type bracket andOrder codes for shock absorber onlyOrder codes for shock absorber and
KSHJ10 10-01, KSHJ10 10-02 : For ORK16
supporting bracket only stroke adjusting bolt holder only
KSHJ12 10-01, KSHJ12 10-02 : For ORK20
CL16For ORK16
KSHJ14 12-01, KSHJ14 12-02 : For ORK25
CL20For ORK20
ORK
KSHJ18 16-01, KSHJ18 16-02 : For ORK32
CL25For ORK25
KSHJ20 16-01, KSHJ20 16-02 : For ORK40
CL32For ORK32
KSHJ22 25-01, KSHJ22 25-02 : For ORK50
CL40For ORK40
16For16 [0.630in.]
CL50For ORK50
20For20 [0.787in.]Order codes for stroke adjusting bolt
25For25 [0.984in.]
only
32For32 [1.260in.]
S16For ORK16
40For40 [1.575in.]
S20For ORK20
50For50 [1.969in.]
S25For ORK25
S32For ORK32
S40For ORK40
S50For ORK50
Basic cylinder type
LL-type bracket
FF-type support
| Bore mm | Stroke mm | Port |
| 16-50 | 100-2000 | M5.Rc1/8 Rc1/4 |
