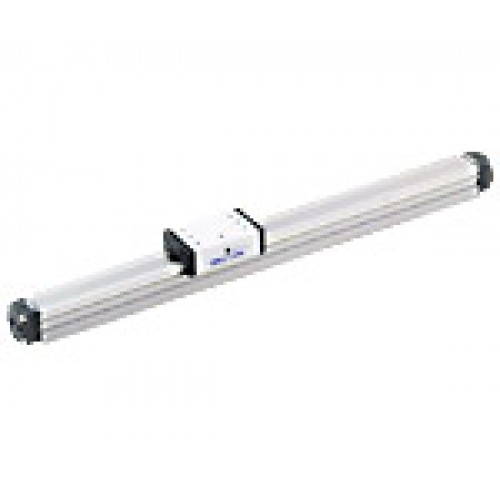

Koganei cylinder side slide Slit Type Rodless Cylinder ORGA Series

Slit Type Rodless Cylinders
ORCA, ORGA
A bend-resistant and wear-resistant
stainless chrome steel seal band is
used, which enables high performance
and long life.

Wide range of products strongly supports space-saving and simplicity in design.

Bore size:
16 [0.630in.] 20 [0.787in.] 25 [0.984in.]
 and
32 [1.260in.] 40 [1.575in.] 50 [1.969in.]

･Compact design maximally reduces total length and height; can halve the installation space as well as to half of the installation space.
･Installation of sensor switch is feasible for factory automation-oriented advanced design.
･Multiple port locations enables one side piping or versatile piping direction.

Bore mm	Stroke mm	Port
16-50	100-2000	M5.Rc1/8 Rc1/4.Rc3/8

Specifications
Bore size
16 [0.630]
20 [0.787]25 [0.984]32 [1.260]40 [1.575]50 [1.969]
mm [in.]
Item
Air
Media
Double acting type
Operation type
0.10.8 [15116]
Operating pressure rangeMPa [psi.]
1.2 [174]
Proof pressureMPa [psi.]
060 [32140]
Operating temperature range °,C [°,
Note Note
Operating speed range mm/s [in./sec.]
1001500 [3.959.1]
1003000 [3.9118.1]
Variable cushion
Cushioning stroke mm [in.]
Lubrication
Not required0.0595
1000 [39.37] or less
[      ]0.0390.50.079
10013000
Stroke tolerancemm [in.]
[      ]
[39.41118.11]0.0390.50.098
30015000
[      ]0.0390.5
[118.15196.85]
Port size

Order codes for L-type bracket only
L : L-type bracket

ORCA: Cylinder basic type

Bore size
16For16 [0.630in.]
20For20 [0.787in.]
25For25 [0.984in.]
32For32 [1.260in.]
40For40 [1.575in.]
50For50 [1.969in.]
Order codes for supporting bracket only
ORCA

F: F-type support
G: G-type support
Bore size
16For16 [0.630in.]
20For20 [0.787in.]
25For25 [0.984in.]
32For32 [1.260in.]
40For40 [1.575in.]
50For50 [1.969in.]
Cylinder basic type

Order codes for piston mount only
ORCA
Bore size
16For16 [0.630in.]
20For20 [0.787in.]
25For25 [0.984in.]
32For32 [1.260in.]
40For40 [1.575in.]
50For50 [1.969in.]
Cylinder basic type
C : C mount
M : M mount
T : T mount (For40 [1.575in.] and50 [1.969in.] only)
CM : CM mount
CT : CT mount (For40 [1.575in.] and50 [1.969in.] only)
