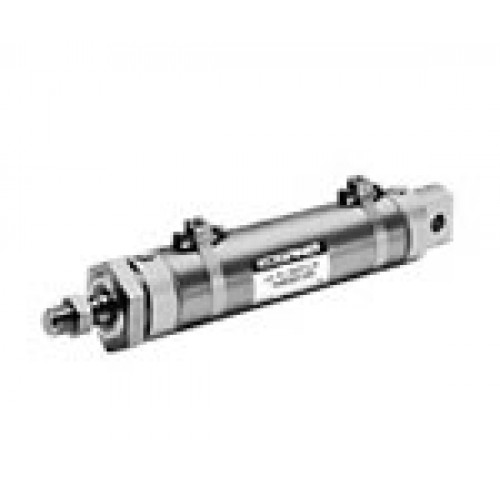

Koganei Slim Cylinder DA Series

Various variations respond flexibly to all kinds of needs.
･Becomes standard for small and medium cylinders with its high quality and high reliability in design using stainless steel tube.
･Can operate at high speed of 700mm/sec and 500mm/sec for 50mm and 63mm respectively.

Bore mm	Stroke mm	Port
20-63	15-500	Rc1/8;Rc1/4

 Specifications
Bore size mm [in.]
32, 40 [1.260, 1.575] 50, 63 [1.969, 2.480]
20, 25 [0.787, 0.984]
Item
Operation type
Double acting type
Media
Air
Basic type, Foot type, Flange type, Pivot type, Head trunnion type, Rod trunnion type
Mounting type
Basic type, Foot type, Flange type, Pivot type
0.040.9 [6131]
Standard cylinder
Operating pressure range
0.040.7
MPa [psi.]
[6102]
Cylinder with variable cushion
0.10.9 [15131]
0.150.9 [22131]
Proof pressureMPa [psi.]
1.03 [149]
1.32 [191]
Operating temperature range°,C [°,
070 [32158]
Operating speed rangemm/s [in./sec.]
30500 [1.219.7]
30800 [1.231.5] (With variable cushion is 301000 [1.239.4])
Standard cylinder
Fixed type (Rubber bumper)
Variable type as standard
Cushion
(Stroke 12mm [0.472in.])
Cylinder with variable cushion
Variable type (12mm [0.472in.] stroke)
Lubrication
Not required
Port sizeRc//

SLIM CYLINDERS
Single Acting Push Type
SLIM
SQUARE ROD CYLINDERS
SLIM
DOUBLE ROD CYLINDERS
SLIMLOW HYDRAULIC
CYLINDERS
SLIM VALPACK CYLINDERS
Standard Rod Cylinders,
Square Rod Cylinders
SLIMSTROKE
ADJUSTING CYLINDERS
Push Side Stroke Adjusting Type,
Pull Side Stroke Adjusting Type
SLIM END KEEP CYLINDERS
Head Side End Keep,
Rod Side End Keep
SLIM BRAKE CYLINDERS
SLIM BLOCK CYLINDERS
SLIM BLOCK
SQUARE ROD CYLINDERS
SLIM BLOCK CYLINDERS
WITH VARIABLE CUSHION
SLIM BLOCK
END KEEP CYLINDERS
SLIM TANDEM CYLINDERS
SLIM
DUAL STROKE CYLINDERS
SLIM
LOW SPEED CYLINDERS
