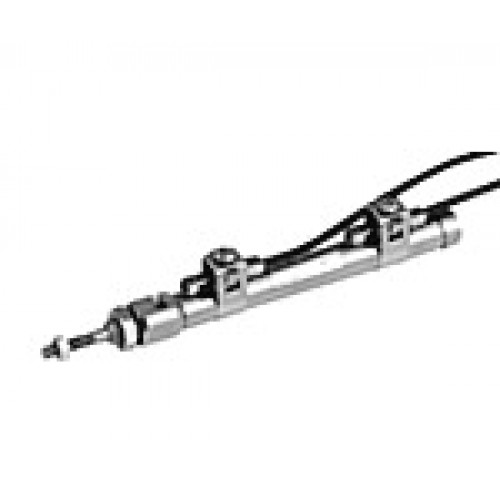

Koganei Pen Cylinder PBDAS Series
Series ranges from 2.5mm to 16mm; conforming to the non-ion standard for all models.
･Wide variation of 15 models including made-to-order products.
| Bore mm | Stroke mm | Port |
| 2.5-16 | 5-200 |
M3;M5;
|
The Pen Cylinder°Os compactness and easy handling make
production lines in a broad range of industries.
A new release with even lighter weight and more
Order Codes
Number of sensor switches
PB ADAE
1030
1 With 1 sensor switch
2 With 2 sensor switches
3 With 3 sensor switches
Bore size
Stroke
Lead wire length
A 1000mm [39in.]
B 3000mm [118in.]
Cylinder specification
Blank Standard cylinder
Rod end accessory (Included at shipping)
Sensor switch
S Cylinder with magnet
Blank No rod end accessory
Blank No sensor switch
I With I type knuckle
ZC253 3-lead wire, solid state type
Y With Y type knuckle (with pin)
ZC230 2-lead wire, solid state typeAs for the cylinder joints and the cylinder rod
ZC201 2-lead wire, reed switch type
DAE Double acting single rod type,
ends, order separately.
ZC205 2-lead wire, reed switch type
pull side stroke adjustingFor details, see p.1544.
cylinder
Mounting type (Included at shipping)
Blank Basic type
Pen cylinder series
Note
1A Single foot mounting type
3 Flange mounting type
Note: When the stroke exceeds 60mm, do not use the
single foot
mounting type.
