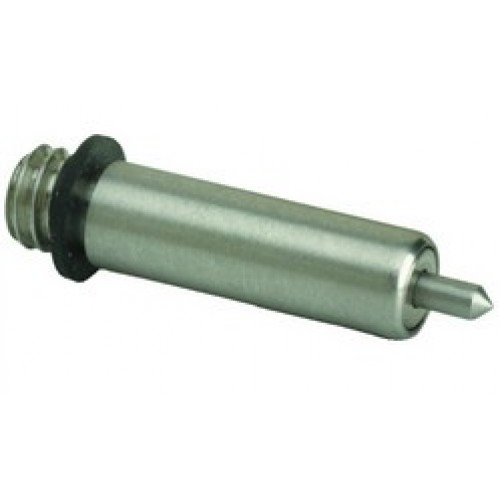

Clippard Stainless steel cylinder 5/32" bore SM-2
Details
5/32” Single Acting, Spring Return, Sub-Miniature Cylinder
Additional Information
| Action | Spring Return, Air Extend |
|---|---|
| Bore | 0.15625 |
| Max PSI | 150 PSI |
| Medium | Air |
| Mount | Plain End |
| Ports | 10-32 & 3-56 |
| Power Factor | 0.02 |
| Rod | Rotating Rod |
| Rod Diameter | 0.062 |
| Spring Force (extended) | 5 oz |
| Spring Force (retracted) | 2 oz |
| Stroke | 0.2500 |
| Temperature Range | 30 F to 230 F |
SM-3-1, SM-3-2, SM-3-3, SM-3-4
