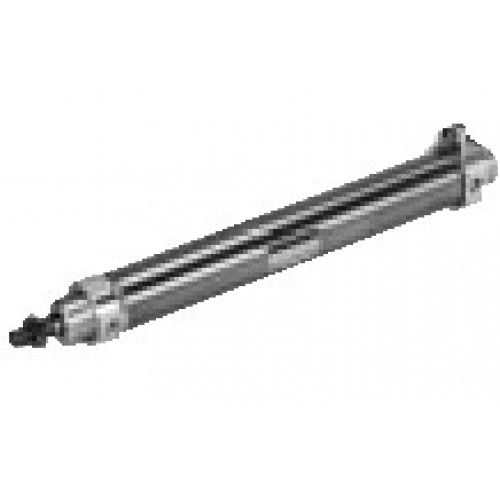

CKD Pneumatic cylinders Standard type Medium bore size cylinder CMK2-Q Series
Medium bore size cylinder
Double acting position locking type
CMK2-Q
Series
Bore size: 20, 25, 32, 40
Descriptions
CMK2-Q
Bore size
Actuation
Working fluid
Max. working pressure
Min. working pressure
Withstanding pressure
Ambient temperature
Port size
Stroke tolerance
Working piston speed
Cushion
Lubrication
Position locking mechanism
Holding force
Allowable energy absorption
mm
MPa
MPa
MPa
mm
mm/s
N
J
20
0.166
25
0.308
32
0.424
40
0.639
Double acting position locking type
Compressed air
1.0
0.15
1.6
-10 to 60 (no freezing)
Rc1/8
(up to 200), (over 200)
50 to 500
Rubber cushion
Not required (when lubricating, use turbine oil Class 1 ISO VG32.)
