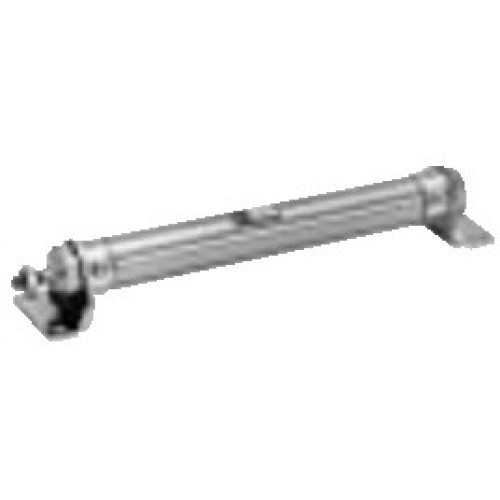

CKD Pneumatic cylinders Standard type Medium bore size cylinder CMK2-C Series
Medium bore size cylinder
Double acting air cushioned
CMK2-C
Series
Bore size: 20, 25, 32, 40
Descriptions
CMK2-C
Bore size
Actuation
Working fluid
Max. working pressure
Min. working pressure
Withstanding pressure
Ambient temperature
Port size
Stroke tolerance
Working piston speed
Cushion
Effective cushion length
Allowable energy absorption
Lubrication
mm
MPa
MPa
MPa
mm
mm/s
mm
J
20
0.34
25
0.46
32
0.88
40
1.27
Double acting air cushioned
Compressed air
1.0
0.1
1.6
-10 to 60 (no freezing)
Rc1/8
(up to 200), (over 200)
50 to 700
Air cushion
12
Not required (when lubricating, use turbine oil Class 1 ISO VG32.)
