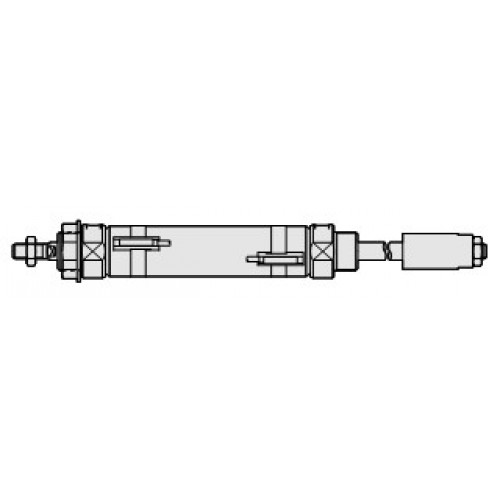

CKD Pneumatic cylinders Standard type Medium bore size cylinder CMK2-P Series
Medium bore size cylinder
Double acting stroke adjustable type (extended)
CMK2-P
Series
Bore size: 20, 25, 32, 40
escriptions
CMK2-P
Bore size mm
Actuation
Working fluid
Max. working pressure
Min. working pressure
Withstanding pressure
Ambient temperature
Port size
Stroke tolerance
Working piston speed
Cushion
Lubrication
Adjustable stroke range
Allowable energy absorption
mm
MPa
MPa
MPa
mm
mm/s
mm
J
20
0.166
25
0.308
32
0.424
40
0.639
Double acting stroke adjustable type (extended)
Compressed air
1.0
0.15
1.6
-10 to 60 (no freezing)
Rc1/8
(up to 200), (over 200)
50 to 500
Rubber cushion
Not required (when lubricating, use turbine oil Class 1 ISO VG32.
