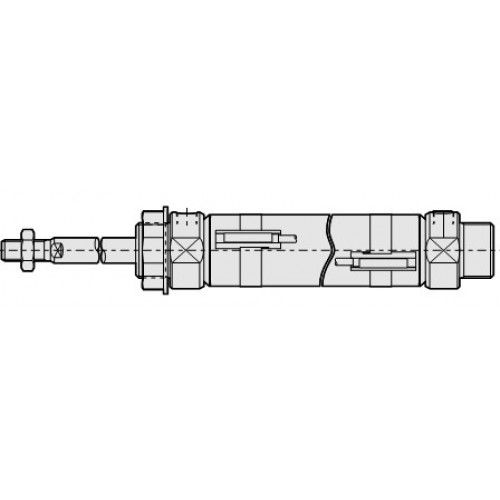

CKD Pneumatic cylinders Standard type Medium bore size cylinder CMK2-SR Series
Medium bore size cylinder
Single acting retract type
CMK2-SR
Series
Bore size: 20, 25, 32, 40
Descriptions
CMK2-SR
Bore size mm
Actuation
Working fluid
Max. working pressure MPa
Min. working pressure MPa
Withstanding pressure MPa
Ambient temperature
Port size
Stroke tolerance mm
Working piston speed mm/s
Cushion
Lubrication
Allowable energy absorption
J
20
0.166
25
0.308
32
0.424
40
0.639
Single acting retract type
Compressed air
1.0
0.2
1.6
-10 to 60 (no freezing)
Rc1/8
(up to 200), (over 200)
50 to 500
Rubber cushion
Not required (when lubricating, use turbine oil Class 1 ISO VG32.)
