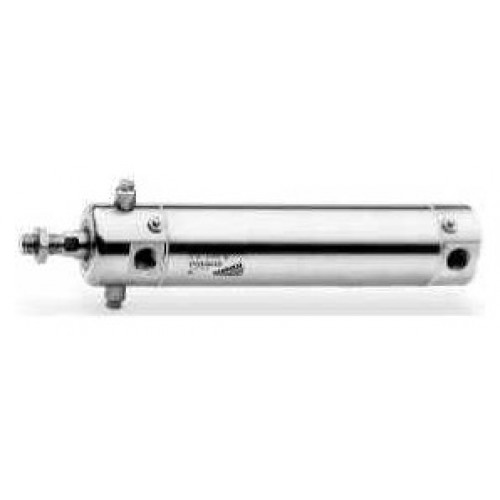

Camozzi Series 97 stainless steel cylinders 97A2V040A0500 Cylinders Series 97, Mod. A

Camozzi Series 97 stainless steel cylinders 97A2V040A0500 Cylinders Series 97, Mod. A
Type of construction the end blocks are screwed to the tube with an intermediate Teflon ring
Operation single-acting and double-acting
Materials end blocks, tube, rod in stainless steel AISI 304 rod seals in PU, piston seals in NBR plastic guiding element, NSF H1-certified lubricant
Type of mounting threaded front and rear locking ring pins on front cap ends rear male hinge articulated rear male hinge rear female hinge
Stroke min-max 25 ÷ 800 mm
Operating temperature 0°C ÷ 80°C (with dry air - 20°C)
Operating pressure 1 ÷ 10 bar
Speed 10 ÷ 1000 mm/sec (without load)
Fluid Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Code Title Type Magnetic Operation Stroke (mm) Diameter (mm) Version Rod seal
97A1A040A0025 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 25 40 standard PU
97A1A040A0025V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 25 40 standard FKM
97A1A040A0050 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard PU
97A1A040A0050V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard FKM
97A1A040A0050 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard PU
97A1A040A0050V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard FKM
97A1V040A0025 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 25 40 standard PU
97A1V040A0025V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 25 40 standard FKM
97A1V040A0050 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard PU
97A1V040A0050V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard FKM
97A1V040A0050 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard PU
97A1V040A0050V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE single-acting, front spring 50 40 standard FKM
97A2A040A0025 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 25 40 standard PU
97A2A040A0025V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 25 40 standard FKM
97A2A040A0050 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 50 40 standard PU
97A2A040A0050V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 50 40 standard FKM
97A2A040A0075 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 75 40 standard PU
97A2A040A0075V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 75 40 standard FKM
97A2A040A0080 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 80 40 standard PU
97A2A040A0080V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 80 40 standard FKM
97A2A040A0100 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 100 40 standard PU
97A2A040A0100V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 100 40 standard FKM
97A2A040A0125 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 125 40 standard PU
97A2A040A0125V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 125 40 standard FKM
97A2A040A0150 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 150 40 standard PU
97A2A040A0150V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 150 40 standard FKM
97A2A040A0160 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 160 40 standard PU
97A2A040A0160V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 160 40 standard FKM
97A2A040A0200 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 200 40 standard PU
97A2A040A0200V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 200 40 standard FKM
97A2A040A0250 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 250 40 standard PU
97A2A040A0250V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 250 40 standard FKM
97A2A040A0300 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 300 40 standard PU
97A2A040A0300V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 300 40 standard FKM
97A2A040A0320 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 320 40 standard PU
97A2A040A0320V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 320 40 standard FKM
97A2A040A0400 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 400 40 standard PU
97A2A040A0400V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 400 40 standard FKM
97A2A040A0500 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard PU
97A2A040A0500V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard FKM
97A2A040A0500 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard PU
97A2A040A0500V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard FKM
97A2V040A0025 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 25 40 standard PU
97A2V040A0025V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 25 40 standard FKM
97A2V040A0050 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 50 40 standard PU
97A2V040A0050V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 50 40 standard FKM
97A2V040A0075 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 75 40 standard PU
97A2V040A0075V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 75 40 standard FKM
97A2V040A0080 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 80 40 standard PU
97A2V040A0080V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 80 40 standard FKM
97A2V040A0100 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 100 40 standard PU
97A2V040A0100V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 100 40 standard FKM
97A2V040A0125 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 125 40 standard PU
97A2V040A0125V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 125 40 standard FKM
97A2V040A0150 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 150 40 standard PU
97A2V040A0150V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 150 40 standard FKM
97A2V040A0160 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 160 40 standard PU
97A2V040A0160V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 160 40 standard FKM
97A2V040A0200 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 200 40 standard PU
97A2V040A0200V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 200 40 standard FKM
97A2V040A0250 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 250 40 standard PU
97A2V040A0250V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 250 40 standard FKM
97A2V040A0300 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 300 40 standard PU
97A2V040A0300V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 300 40 standard FKM
97A2V040A0320 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 320 40 standard PU
97A2V040A0320V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 320 40 standard FKM
97A2V040A0400 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 400 40 standard PU
97A2V040A0400V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 400 40 standard FKM
97A2V040A0500 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard PU
97A2V040A0500V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard FKM
97A2V040A0500 Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard PU
97A2V040A0500V Cylinders Series 97, Mod. A Stainless steel round cylinders TRUE double-acting, front and rear cushions 500 40 standard FKM
