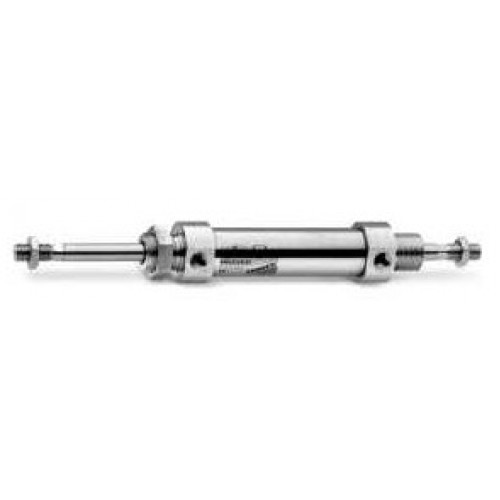

Camozzi Stainless steel cylinders 94N3V16A200 Cylinders Series 94 and 95 - through-rod
| Construction | end blocks secured to the tube |
| Operation | single-acting and double-acting |
| Materials | end blocks and rod in stainless steel AISI 316, seals in NBR, plastic guiding element, NSF H1-certified lubricant Series 94: tube in stainless steel AISI 304 Series 95: tube in stainless steel AISI 316 |
| Mounting | several types of cylinders clamps available |
| Strokes min - max | 10 ÷ 500 mm |
| Operating temperature | 0° - 80°C (with dry air -20°C) |
| Operating pressure | 1 ÷ 10 bar |
| Speed | 10 ÷ 1000 mm/sec (without load) |
| Fluid | clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Code | Title | Type | Operation | Stroke (multi-position) | Diameter (mm) |
| 94N3A16A010 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 10 | 16 |
| 94N3A16A025 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 25 | 16 |
| 94N3A16A040 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 40 | 16 |
| 94N3A16A050 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 50 | 16 |
| 94N3A16A080 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 80 | 16 |
| 94N3A16A100 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 100 | 16 |
| 94N3A16A125 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 125 | 16 |
| 94N3A16A160 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 160 | 16 |
| 94N3A16A200 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 200 | 16 |
| 94N3V16A010 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 10 | 16 |
| 94N3V16A025 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 25 | 16 |
| 94N3V16A040 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 40 | 16 |
| 94N3V16A050 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 50 | 16 |
| 94N3V16A080 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 80 | 16 |
| 94N3V16A100 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 100 | 16 |
| 94N3V16A125 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 125 | 16 |
| 94N3V16A160 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 160 | 16 |
| 94N3V16A200 | Cylinders Series 94 and 95 - through-rod | Stainless steel minicylinders | double-acting, through-rod | 200 | 16 |
