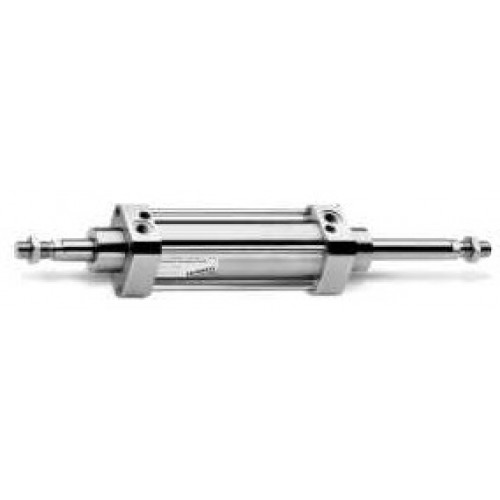

Camozzi Stainless steel cylinders 90M6V032A0500 Cylinders Series 90 - through-rod

Camozzi Stainless steel cylinders 90M6V032A0500 Cylinders Series 90 - through-rod
Construction with tie-rods
Operation single-acting or double-acting
Materials - end blocks, barrel and rod in stainless steel AISI 316 - seals in NBR - plastic guiding element, NSF H1-certified lubricant
Mountings several types of cylinders mounting brackets available
Stroke 25 ÷ 800 mm
Operating temperature 0°C ÷ 80°C (with dry air - 20°C)
Operating pressure 1 ÷ 10 bar
Speed 10 ÷ 1000 mm/sec (no load)
Media Filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Code Title Type Operation Stroke (multi-position) Diameter (mm)
90M6A032A0025 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 25 32
90M6A032A0050 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 50 32
90M6A032A0075 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 75 32
90M6A032A0080 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 80 32
90M6A032A0100 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 100 32
90M6A032A0125 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 125 32
90M6A032A0150 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 150 32
90M6A032A0160 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 160 32
90M6A032A0200 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 200 32
90M6A032A0250 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 250 32
90M6A032A0300 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 300 32
90M6A032A0320 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 320 32
90M6A032A0400 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 400 32
90M6A032A0500 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 500 32
90M6V032A0025 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 25 32
90M6V032A0050 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 50 32
90M6V032A0075 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 75 32
90M6V032A0080 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 80 32
90M6V032A0100 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 100 32
90M6V032A0125 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 125 32
90M6V032A0150 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 150 32
90M6V032A0160 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 160 32
90M6V032A0200 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 200 32
90M6V032A0250 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 250 32
90M6V032A0300 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 300 32
90M6V032A0320 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 320 32
90M6V032A0400 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 400 32
90M6V032A0500 Cylinders Series 90 - through-rod Stainless steel tie-rods cylinders double-acting, through-rod 500 32
