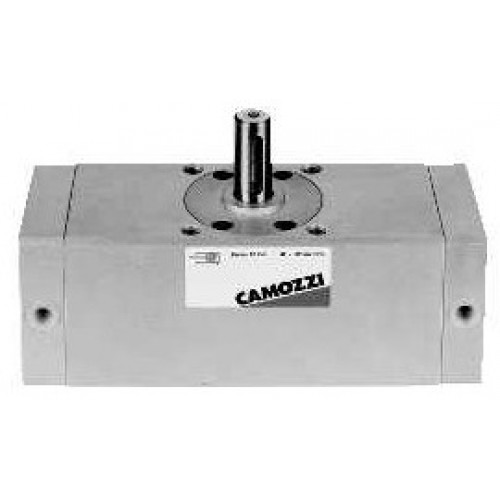

Camozzi Rotary cylinders 30-050/090 Rotary cylinders Series 30
| Type of construction | profile |
| Operation | double acting |
| Materials | aluminium profile body & end blocks - NBR seals - other parts - hardened steel |
| Mounting | by means of holes in body |
| Bore | ø 50 - 63 - 80 - 100 |
| Installation | in any position |
| Working temperature | 0°C ÷ 50°C (- 20°C on dry air) |
| Standard rotation | 90° - 180° |
| Operating pressure | 0.5 ÷ 10 bar |
| Fluid | clean air with or without lubrication |
| Code | Title | Type | Operation | Rotational angle | Diameter (mm) |
| 30-050/090 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 90° | 50 |
| 30-063/090 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 90° | 63 |
| 30-080/090 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 90° | 80 |
| 30-100/090 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 90° | 100 |
| 30-050/180 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 180° | 50 |
| 30-063/180 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 180° | 63 |
| 30-080/180 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 180° | 80 |
| 30-100/180 | Rotary cylinders Series 30 | Compact rotary cylinders | double-acting | 180° | 100 |
