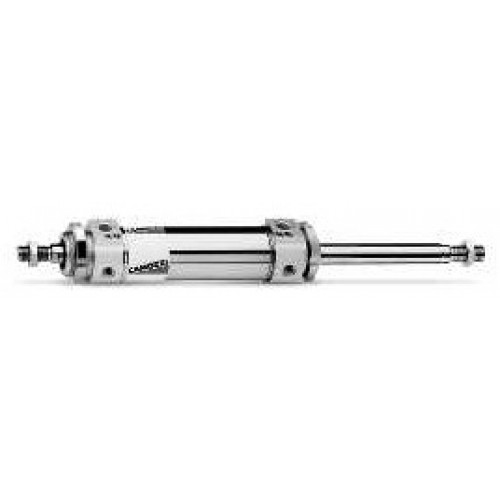

Camozzi Non standard cylinders 42M6N063A0300 Cylinders Series 42 - through-rod
| Type of construction | compact - flanged |
| Operation | single-acting or double-acting |
| Materials | end-blocks = AL tube = stainless steel AISI 304 rod = stainless steel AISI 420B other parts (see coding) |
| Type of mounting | front flange, rear flange, feet, front and rear trunnion, threaded pins |
| Strokes min - max | 10 - 1000 mm |
| Operating temperature | 0 ÷ 80°C (with dry air -20°C) |
| Operating pressure | 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting) |
| Speed | 10 ÷ 1000 mm/sec (NO LOAD) |
| Fluid | clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Code | Title | Type | Operation | Stroke (mm) | Diameter (mm) |
| 42M6N063A0025 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 25 | 63 |
| 42M6N063A0050 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 50 | 63 |
| 42M6N063A0075 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 75 | 63 |
| 42M6N063A0080 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 80 | 63 |
| 42M6N063A0100 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 100 | 63 |
| 42M6N063A0125 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 125 | 63 |
| 42M6N063A0150 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 150 | 63 |
| 42M6N063A0160 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 160 | 63 |
| 42M6N063A0200 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 200 | 63 |
| 42M6N063A0250 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 250 | 63 |
| 42M6N063A0300 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 300 | 63 |
| 42M6N063A0320 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 320 | 63 |
| 42M6N063A0400 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 400 | 63 |
| 42M6N063A0500 | Cylinders Series 42 - through-rod | Round cylinders | double-acting, through-rod | 500 | 63 |
| 42M7N063A0025 | Cylinders Series 42 - through-rod | Round cylinders | single-acting, through-rod | 25 | 63 |
| 42M7N063A0050 | Cylinders Series 42 - through-rod | Round cylinders | single-acting, through-rod | 50 | 63 |
| 42M7N063A0075 | Cylinders Series 42 - through-rod | Round cylinders | single-acting, through-rod | 75 | 63 |
