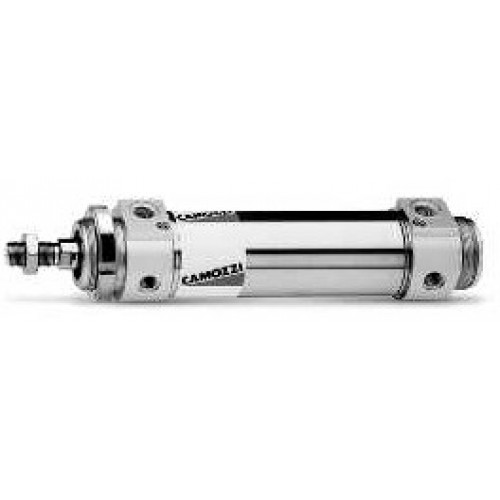

Camozzi Non standard cylinders 42M5N040A0320 Cylinders Series 42

Camozzi Non standard cylinders 42M5N040A0320 Cylinders Series 42
Type of construction compact - flanged
Operation single-acting or double-acting
Materials end-blocks = AL tube = stainless steel AISI 304 rod = stainless steel AISI 420B other parts (see coding)
Type of mounting front flange, rear flange, feet, front and rear trunnion, threaded pins
Strokes min - max 10 - 1000 mm
Operating temperature 0 ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting)
Speed 10 ÷ 1000 mm/sec (NO LOAD)
Fluid clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Code Title Type Operation Stroke (mm) Diameter (mm)
42M1N040A0025 Cylinders Series 42 Round cylinders single-acting 25 40
42M1N040A0050 Cylinders Series 42 Round cylinders single-acting 50 40
42M1N040A0075 Cylinders Series 42 Round cylinders single-acting 75 40
42M2N040A0025 Cylinders Series 42 Round cylinders double-acting 25 40
42M2N040A0050 Cylinders Series 42 Round cylinders double-acting 50 40
42M2N040A0075 Cylinders Series 42 Round cylinders double-acting 75 40
42M2N040A0080 Cylinders Series 42 Round cylinders double-acting 80 40
42M2N040A0100 Cylinders Series 42 Round cylinders double-acting 100 40
42M2N040A0125 Cylinders Series 42 Round cylinders double-acting 125 40
42M2N040A0150 Cylinders Series 42 Round cylinders double-acting 150 40
42M2N040A0160 Cylinders Series 42 Round cylinders double-acting 160 40
42M2N040A0200 Cylinders Series 42 Round cylinders double-acting 200 40
42M2N040A0250 Cylinders Series 42 Round cylinders double-acting 250 40
42M2N040A0300 Cylinders Series 42 Round cylinders double-acting 300 40
42M2N040A0320 Cylinders Series 42 Round cylinders double-acting 320 40
42M2N040A0400 Cylinders Series 42 Round cylinders double-acting 400 40
42M2N040A0500 Cylinders Series 42 Round cylinders double-acting 500 40
42M3N040A0025 Cylinders Series 42 Round cylinders double-acting 25 40
42M3N040A0050 Cylinders Series 42 Round cylinders double-acting 50 40
42M3N040A0075 Cylinders Series 42 Round cylinders double-acting 75 40
42M3N040A0080 Cylinders Series 42 Round cylinders double-acting 80 40
42M3N040A0100 Cylinders Series 42 Round cylinders double-acting 100 40
42M3N040A0125 Cylinders Series 42 Round cylinders double-acting 125 40
42M3N040A0150 Cylinders Series 42 Round cylinders double-acting 150 40
42M3N040A0160 Cylinders Series 42 Round cylinders double-acting 160 40
42M3N040A0200 Cylinders Series 42 Round cylinders double-acting 200 40
42M3N040A0250 Cylinders Series 42 Round cylinders double-acting 250 40
42M3N040A0300 Cylinders Series 42 Round cylinders double-acting 300 40
42M3N040A0320 Cylinders Series 42 Round cylinders double-acting 320 40
42M3N040A0400 Cylinders Series 42 Round cylinders double-acting 400 40
42M3N040A0500 Cylinders Series 42 Round cylinders double-acting 500 40
42M4N040A0025 Cylinders Series 42 Round cylinders double-acting 25 40
42M4N040A0050 Cylinders Series 42 Round cylinders double-acting 50 40
42M4N040A0075 Cylinders Series 42 Round cylinders double-acting 75 40
42M4N040A0080 Cylinders Series 42 Round cylinders double-acting 80 40
42M4N040A0100 Cylinders Series 42 Round cylinders double-acting 100 40
42M4N040A0125 Cylinders Series 42 Round cylinders double-acting 125 40
42M4N040A0150 Cylinders Series 42 Round cylinders double-acting 150 40
42M4N040A0160 Cylinders Series 42 Round cylinders double-acting 160 40
42M4N040A0200 Cylinders Series 42 Round cylinders double-acting 200 40
42M4N040A0250 Cylinders Series 42 Round cylinders double-acting 250 40
42M4N040A0300 Cylinders Series 42 Round cylinders double-acting 300 40
42M4N040A0320 Cylinders Series 42 Round cylinders double-acting 320 40
42M4N040A0400 Cylinders Series 42 Round cylinders double-acting 400 40
42M4N040A0500 Cylinders Series 42 Round cylinders double-acting 500 40
42M5N040A0025 Cylinders Series 42 Round cylinders double-acting 25 40
42M5N040A0050 Cylinders Series 42 Round cylinders double-acting 50 40
42M5N040A0075 Cylinders Series 42 Round cylinders double-acting 75 40
42M5N040A0080 Cylinders Series 42 Round cylinders double-acting 80 40
42M5N040A0100 Cylinders Series 42 Round cylinders double-acting 100 40
42M5N040A0125 Cylinders Series 42 Round cylinders double-acting 125 40
42M5N040A0150 Cylinders Series 42 Round cylinders double-acting 150 40
42M5N040A0160 Cylinders Series 42 Round cylinders double-acting 160 40
42M5N040A0200 Cylinders Series 42 Round cylinders double-acting 200 40
42M5N040A0250 Cylinders Series 42 Round cylinders double-acting 250 40
42M5N040A0300 Cylinders Series 42 Round cylinders double-acting 300 40
42M5N040A0320 Cylinders Series 42 Round cylinders double-acting 320 40
42M5N040A0400 Cylinders Series 42 Round cylinders double-acting 400 40
42M5N040A0500 Cylinders Series 42 Round cylinders double-acting 500 40
