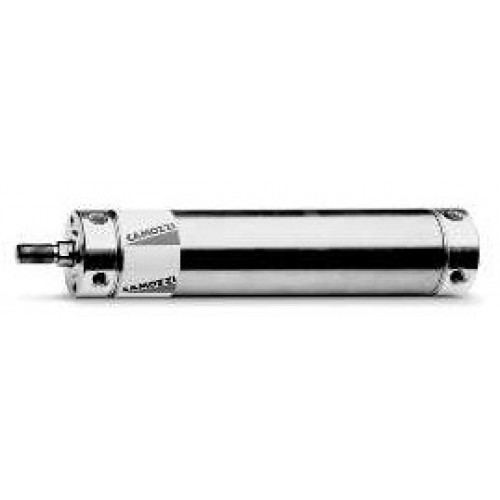

Camozzi Non standard Series 27 roundline cylinders 27U2A50A0320
| Type of construction | flanged |
| Operation | double acting |
| Materials | end-blocks = AL - rod and tube = stainless steel - piston = AL piston and rod seals = PU |
| Mounting | feet - trunnion - steel bar - pins |
| Strokes min-max | all diameters 10 - 1000 mm |
| Bores | ø 20, 25, 32, 40, 50, 63 |
| Operating temperature | 0°C ÷ 80°C (with dry air - 20°C) |
| Operating pressure | 1 ÷ 10 bar |
| Speed | 10 ÷ 1000 mm/sec (no load) |
| Fluid | filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Code | Title | Type | Operation | Stroke (mm) | Diameter (mm) |
| 27U2A50A0025 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 25 | 50 |
| 27U2A50A0040 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 40 | 50 |
| 27U2A50A0050 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 50 | 50 |
| 27U2A50A0080 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 80 | 50 |
| 27U2A50A0100 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 100 | 50 |
| 27U2A50A0125 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 125 | 50 |
| 27U2A50A0160 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 160 | 50 |
| 27U2A50A0200 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 200 | 50 |
| 27U2A50A0250 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 250 | 50 |
| 27U2A50A0300 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 300 | 50 |
| 27U2A50A0320 | Cylinders Series 27 (Ø 50, 63) | Round cylinders | double-acting | 320 | 50 |
