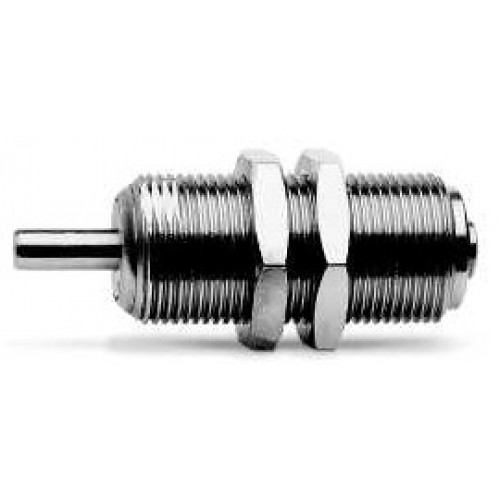

Camozzi non standard Series 14 Compact minicylinders with non threaded piston rod Mod. 14N1A 14N1A06B10
| Type of construction | compact, non magnetic |
| Operation | single-acting |
| Materials | body = brass seals = NBR other = stainless steel |
| Operating pressure | P. min 2,5 bar - P. max 8 bar |
| Operating temperature | 0°C ÷ 80°C (with dry air - 20°C) |
| Fluid | clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Bore | ø 6, 10, 16 |
| Stroke | see table |
| Mounting method | by means of threaded body |
| Code | Title | Type | Operation | Stroke (mm) | Diameter (mm) |
| 14N1A06B05 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 5 | 6 |
| 14N1A06B10 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 10 | 6 |
| 14N1A06B15 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 15 | 6 |
| 14N1A10B05 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 5 | 10 |
| 14N1A10B10 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 10 | 10 |
| 14N1A10B15 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 15 | 10 |
| 14N1A16B05 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 5 | 16 |
| 14N1A16B10 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 10 | 16 |
| 14N1A16B15 | Compact minicylinders with threaded piston rod Mod. 14N1A | Compact minicylinders | single-acting | 15 | 16 |
