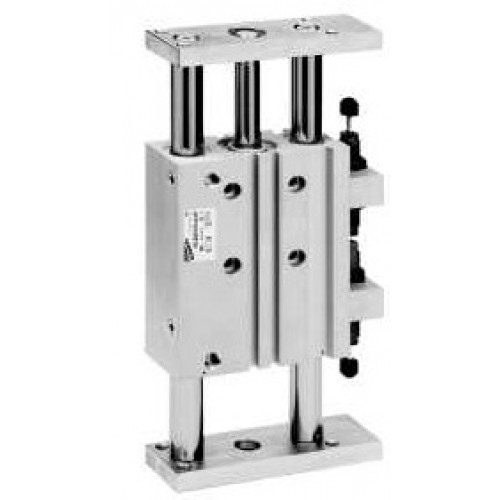

Camozzi Guided cylinders series QCTF - QCBF slide units Mod. QCTF and QCBF type "B" QCTF2A032B100
| Type of construction | guided with double bearings and double flanges QCTF = sintered bronze bushes QCBF = linear ball bearings |
| Operation | double-acting |
| Materials | body = anodized AL flanges = zinc-plated steel piston rod = rolled stainless steel AISI QCTF columns = rolled stainless steel 420B QCBF columns = hardened steel C50 seals = PU |
| Mounting | threaded and non threaded holes in the body |
| Strokes min. max | ( see table) |
| Operating temperature | 0°C ÷ 80°C ( with dry air -20°C) |
| Speed | 50 ÷ 500 mm/s |
| Stroke end cushioning Type A | extended stroke - fixed mechanical cushioning retracted stroke - fixed mechanical cushioning we recommend preventing the piston from striking against the end covers |
| Stroke end cushioning Type B | extended stroke - shock absorber retracted stroke - shock absorber |
| Stroke end cushioning Type C | extended stroke - shock absorber retracted stroke - fixed mechanical cushioning we recommend preventing the piston from striking against the end covers |
| Operating pressure | 1 ÷ 10 bar |
| Fluid | clean air, non lubricated. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Code | Title | Type | Stroke (mm) | Operation | Diameter (mm) |
| QCBF2A032B100 | Mod. QCTF and QCBF type "B" | Guided actuators | 100 | double-acting | 32 |
| QCBF2A032B125 | Mod. QCTF and QCBF type "B" | Guided actuators | 125 | double-acting | 32 |
| QCBF2A032B150 | Mod. QCTF and QCBF type "B" | Guided actuators | 150 | double-acting | 32 |
| QCBF2A032B175 | Mod. QCTF and QCBF type "B" | Guided actuators | 175 | double-acting | 32 |
| QCBF2A032B200 | Mod. QCTF and QCBF type "B" | Guided actuators | 200 | double-acting | 32 |
| QCTF2A032B100 | Mod. QCTF and QCBF type "B" | Guided actuators | 100 | double-acting | 32 |
| QCTF2A032B125 | Mod. QCTF and QCBF type "B" | Guided actuators | 125 | double-acting | 32 |
| QCTF2A032B150 | Mod. QCTF and QCBF type "B" | Guided actuators | 150 | double-acting | 32 |
| QCTF2A032B175 | Mod. QCTF and QCBF type "B" | Guided actuators | 175 | double-acting | 32 |
| QCTF2A032B200 | Mod. QCTF and QCBF type "B" | Guided actuators | 200 | double-acting | 32 |
