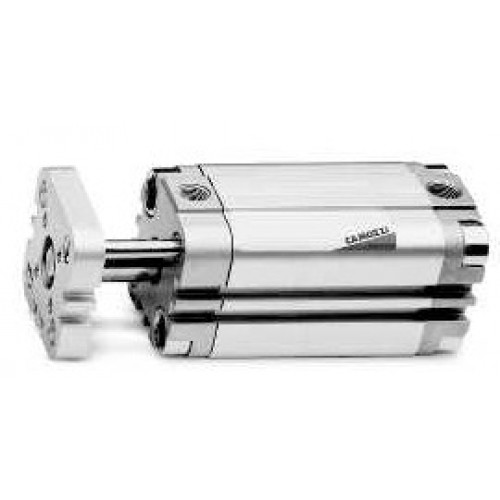

Camozzi Compact / short-stroke cylinders Series 31 31R3A025A015 Compact magnetic cylinders Mod. 31R
| Type of construction | compact profile |
| Operation | single and double-acting |
| Materials | AL body and end-blocks - rolled stainless steel AISI 303 rod - AL piston rod PU seals or FKM seals for high temperatures (140°C) |
| Brackets | flange, feet, trunnion |
| Stroke min - max | Series 31R, 31M and 31F: ø12÷25 = 1÷200mm, ø32 ÷ 63 = 1÷300 mm, ø80÷100 = 1÷400mm The min. stroke for the use of sensors is 10 mm. |
| Operating temperature | 0°C ÷ 80°C (with dry air - 20°C) |
| Operating pressure | 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting) |
| Fluid | filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Speed | 10 ÷ 1000 mm/sec (without load) |
| Code | Title | Type | Operation | Stroke (mm) | Diameter (mm) |
| 31R2A025A005 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 5 | 25 |
| 31R2A025A010 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 10 | 25 |
| 31R2A025A015 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 15 | 25 |
| 31R2A025A020 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 20 | 25 |
| 31R2A025A025 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 25 | 25 |
| 31R2A025A030 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 30 | 25 |
| 31R2A025A040 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 40 | 25 |
| 31R2A025A050 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting | 50 | 25 |
| 31R3A025A005 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 5 | 25 |
| 31R3A025A010 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 10 | 25 |
| 31R3A025A015 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 15 | 25 |
| 31R3A025A020 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 20 | 25 |
| 31R3A025A025 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 25 | 25 |
| 31R3A025A030 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 30 | 25 |
| 31R3A025A040 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 40 | 25 |
| 31R3A025A050 | Compact magnetic cylinders Mod. 31R | Compact cylinders | double-acting, through-rod | 50 | 25 |
