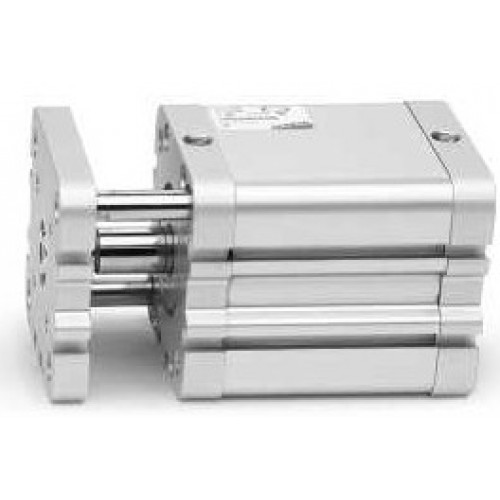

Camozzi International standard cylinders 32R2A080A010 Compact magnetic cylinders Mod. 32R

Camozzi International standard cylinders 32R2A080A010 Compact magnetic cylinders Mod. 32R
Construction compact profile
Operation single and double acting, magnetic
Materials anodized AL body and end-blocks - rolled stainless steel AISI 303 rod anodized AL piston - rod seal, end-block OR and piston seal in PU high temperatures: rod seal, OR end-block and piston in FKM (140°)
Mounting with threaded holes on the end blocks flange - feet - trunnion
Stroke min and max (1) Series 32F, 32M, 32R Ø20-25 = 5-300 mm Series 32F, 32M, 32R Ø32-40-50-63 = 5-400 mm Series 32F, 32M, 32R Ø80-100 = 5-500 mm
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar (double-acting) 2 ÷ 10 bar (single-acting)
Fluid clean air without lubrication. If lubricated air is used it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Operation speed 10 ÷ 1000mm/sec. (without load)
Code Title Type Operation Stroke (mm) Magnetic Diameter (mm)
32R2A080A125 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 125 80
32R2A080A150 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 150 80
32R2A080A200 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 200 80
32R2A080A250 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 250 80
32R2A080A300 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 300 80
32R3A080A010 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 10 TRUE 80
32R3A080A015 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 15 TRUE 80
32R3A080A020 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 20 TRUE 80
32R3A080A025 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 25 TRUE 80
32R3A080A030 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 30 TRUE 80
32R3A080A040 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 40 TRUE 80
32R3A080A050 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 50 TRUE 80
32R3A080A060 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 60 TRUE 80
32R3A080A080 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 80 TRUE 80
32R3A080A100 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 100 TRUE 80
32R3A080A125 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 125 TRUE 80
32R3A080A150 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 150 TRUE 80
32R3A080A200 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 200 TRUE 80
32R3A080A250 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 250 TRUE 80
32R3A080A300 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting, through-rod 300 TRUE 80
32R2A080A010 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 10 80
32R2A080A015 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 15 80
32R2A080A020 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 20 80
32R2A080A025 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 25 80
32R2A080A030 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 30 80
32R2A080A040 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 40 80
32R2A080A050 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 50 80
32R2A080A060 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 60 80
32R2A080A080 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 80 80
32R2A080A100 Compact magnetic cylinders Mod. 32R Compact cylinders double-acting 100 80
