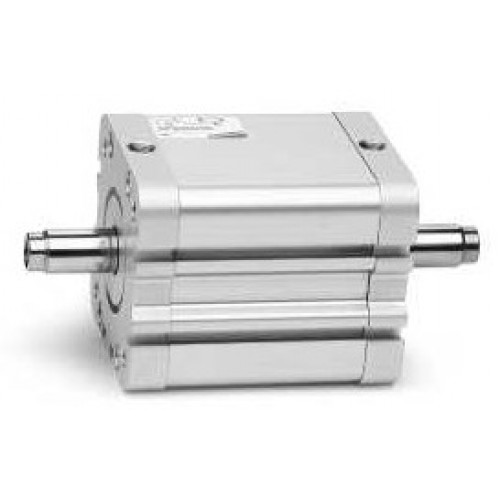

Camozzi International standard cylinders 32M3A032A030 Compact magnetic cylinders Mod. 32F3 and 32M3

Construction compact profile
Operation single and double acting, magnetic
Materials anodized AL body and end-blocks - rolled stainless steel AISI 303 rod anodized AL piston - rod seal, end-block OR and piston seal in PU high temperatures: rod seal, OR end-block and piston in FKM (140°)
Mounting with threaded holes on the end blocks flange - feet - trunnion
Stroke min and max (1) Series 32F, 32M, 32R Ø20-25 = 5-300 mm Series 32F, 32M, 32R Ø32-40-50-63 = 5-400 mm Series 32F, 32M, 32R Ø80-100 = 5-500 mm
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar (double-acting) 2 ÷ 10 bar (single-acting)
Fluid clean air without lubrication. If lubricated air is used it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Operation speed 10 ÷ 1000mm/sec. (without load)
Code Title Operation Stroke (mm) Diameter (mm)
32M3A032A100 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 100 32
32M3A032A125 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 125 32
32M3A032A150 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 150 32
32M3A032A200 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 200 32
32M3A032A250 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 250 32
32M3A032A300 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 300 32
32M3A032A320 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 320 32
32F3A032A005 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 5 32
32F3A032A010 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 10 32
32F3A032A015 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 15 32
32F3A032A020 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 20 32
32F3A032A025 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 25 32
32F3A032A030 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 30 32
32F3A032A040 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 40 32
32F3A032A050 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 50 32
32F3A032A060 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 60 32
32F3A032A080 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 80 32
32F3A032A100 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 100 32
32F3A032A125 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 125 32
32F3A032A150 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 150 32
32F3A032A200 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 200 32
32F3A032A250 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 250 32
32F3A032A300 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 300 32
32F3A032A320 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 320 32
32F3A032A400 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 400 32
32M3A032A005 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 5 32
32M3A032A010 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 10 32
32M3A032A015 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 15 32
32M3A032A020 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 20 32
32M3A032A025 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 25 32
32M3A032A030 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 30 32
32M3A032A040 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 40 32
32M3A032A050 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 50 32
32M3A032A060 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 60 32
32M3A032A080 Compact magnetic cylinders Mod. 32F3 and 32M3 double-acting 80 32
