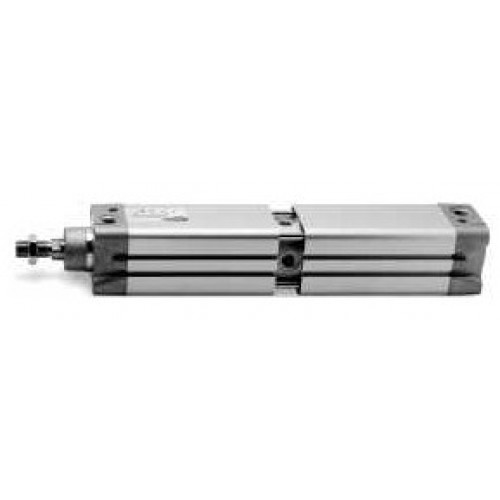

Camozzi International standard cylinders 61M2P032A0025N Cylinders Series 61 - tandem version

Camozzi International standard cylinders 61M2P032A0025N Cylinders Series 61 - tandem version
Type of construction with tie-rods (inside the profile)
Operation double-acting, single-acting, tandem. Low friction version: double-acting only.
Materials standard: AL end-blocks and piston, rolled stainless steel AISI 420B rod, anodized AL profile tube, zinc-plated steel tie-rods and tie-rod nuts, PU seals; low friction: standard materials with NBR piston seal and NBR rod seal (FKM rod seal on request) low temperature: standard materials with chrome plated stainless steel AISI 420B rod, brass rod scraper ring, stainless steel AISI 303 nuts, stainless steel AISI 420B tie-rods, PU piston seals and NBR rod seal
Type of mounting with front / rear flange, foot mounting, with front / rear / centre / swivel trunnion
Stroke min - max 10 ÷ 2500 mm
Operating temperature standard and low friction: 0°C ÷ 80°C (with dry air -20°C) low temperature (-40°C version): -40°C ÷ 60°C (with dry air -40°C) low temperature (-50°C version): -50°C ÷ 60°C (with dry air -50°C)
Operating pressure 1 ÷ 10 bar (standard and low temperature); 0,1 ÷ 10 bar (low friction)
Speed 10 ÷ 1000 mm/sec, no load (standard and low temperature); 5 ÷ 1000 mm/sec, no load (low friction)
Fluid filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Code Title Type Version Operation Diameter (mm) Stroke (mm)
61M2P032A0025N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 25
61M2P032A0050N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 50
61M2P032A0080N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 80
61M2P032A0100N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 100
61M2P032A0125N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 125
61M2P032A0150N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 150
61M2P032A0160N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 160
61M2P032A0200N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 200
61M2P032A0250N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 250
61M2P032A0300N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 300
61M2P032A0320N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 320
61M2P032A0400N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 400
61M2P032A0500N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 500
61M3P032A0025N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 25
61M3P032A0050N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 50
61M3P032A0080N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 80
61M3P032A0100N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 100
61M3P032A0125N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 125
61M3P032A0150N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 150
61M3P032A0160N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 160
61M3P032A0200N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 200
61M3P032A0250N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 250
61M3P032A0300N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 300
61M3P032A0320N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 320
61M3P032A0400N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 400
61M3P032A0500N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 500
61M4P032A0025N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 25
61M4P032A0050N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 50
61M4P032A0080N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 80
61M4P032A0100N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 100
61M4P032A0125N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 125
61M4P032A0150N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 150
61M4P032A0160N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 160
61M4P032A0200N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 200
61M4P032A0250N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 250
61M4P032A0300N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 300
61M4P032A0320N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 320
61M4P032A0400N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 400
61M4P032A0500N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 500
61M5P032A0025N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 25
61M5P032A0050N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 50
61M5P032A0080N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 80
61M5P032A0100N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 100
61M5P032A0125N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 125
61M5P032A0150N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 150
61M5P032A0160N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 160
61M5P032A0200N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 200
61M5P032A0250N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 250
61M5P032A0300N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 300
61M5P032A0320N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 320
61M5P032A0400N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 400
61M5P032A0500N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting 32 500
61M6P032A0025N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 25
61M6P032A0050N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 50
61M6P032A0080N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 80
61M6P032A0100N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 100
61M6P032A0125N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 125
61M6P032A0150N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 150
61M6P032A0160N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 160
61M6P032A0200N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 200
61M6P032A0250N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 250
61M6P032A0300N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 300
61M6P032A0320N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 320
61M6P032A0400N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 400
61M6P032A0500N Cylinders Series 61 - tandem version Profile cylinders - Tandem standard double-acting, through-rod 32 500
