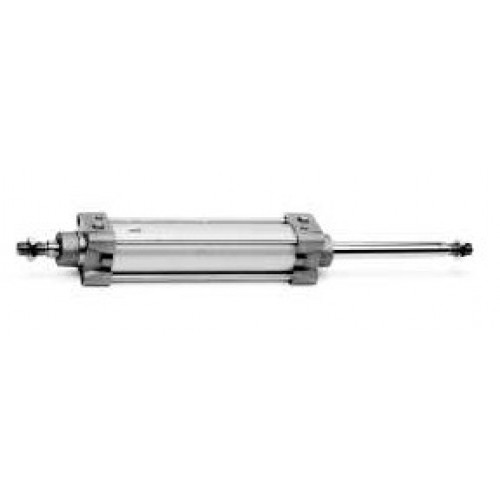

Camozzi International standard cylinders 61M6P032A0025 Cylinders Series 61 - through-rod
| Type of construction | with tie-rods (inside the profile) |
| Operation | double-acting, single-acting, tandem. Low friction version: double-acting only. |
| Materials | standard: AL end-blocks and piston, rolled stainless steel AISI 420B rod, anodized AL profile tube, zinc-plated steel tie-rods and tie-rod nuts, PU seals; low friction: standard materials with NBR piston seal and NBR rod seal (FKM rod seal on request) low temperature: standard materials with chrome plated stainless steel AISI 420B rod, brass rod scraper ring, stainless steel AISI 303 nuts, stainless steel AISI 420B tie-rods, PU piston seals and NBR rod seal |
| Type of mounting | with front / rear flange, foot mounting, with front / rear / centre / swivel trunnion |
| Stroke min - max | 10 ÷ 2500 mm |
| Operating temperature | standard and low friction: 0°C ÷ 80°C (with dry air -20°C) low temperature (-40°C version): -40°C ÷ 60°C (with dry air -40°C) low temperature (-50°C version): -50°C ÷ 60°C (with dry air -50°C) |
| Operating pressure | 1 ÷ 10 bar (standard and low temperature); 0,1 ÷ 10 bar (low friction) |
| Speed | 10 ÷ 1000 mm/sec, no load (standard and low temperature); 5 ÷ 1000 mm/sec, no load (low friction) |
| Fluid | filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Code | Title | Type | Version | Operation | Diameter (mm) | Stroke (mm) |
| 61M6P032A0025 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 25 |
| 61M6P032A0050 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 50 |
| 61M6P032A0080 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 80 |
| 61M6P032A0100 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 100 |
| 61M6P032A0125 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 125 |
| 61M6P032A0150 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 150 |
| 61M6P032A0160 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 160 |
| 61M6P032A0200 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 200 |
| 61M6P032A0250 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 250 |
| 61M6P032A0300 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 300 |
| 61M6P032A0320 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 320 |
| 61M6P032A0400 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 400 |
| 61M6P032A0500 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 500 |
| 61M6P032A0600 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 600 |
| 61M6P032A0700 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 700 |
| 61M6P032A0800 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 800 |
| 61M6P032A0900 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 900 |
| 61M6P032A1000 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 1000 |
| 61M6P032A1250 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 1250 |
| 61M6P032A1500 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 1500 |
| 61M6P032A1750 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 1750 |
| 61M6P032A2000 | Cylinders Series 61 - through-rod | Profile cylinders | standard | double-acting, through-rod | 32 | 2000 |
| 61M7P032A0025 | Cylinders Series 61 - through-rod | Profile cylinders | standard | single-acting, through-rod | 32 | 25 |
| 61M7P032A0050 | Cylinders Series 61 - through-rod | Profile cylinders | standard | single-acting, through-rod | 32 | 50 |
