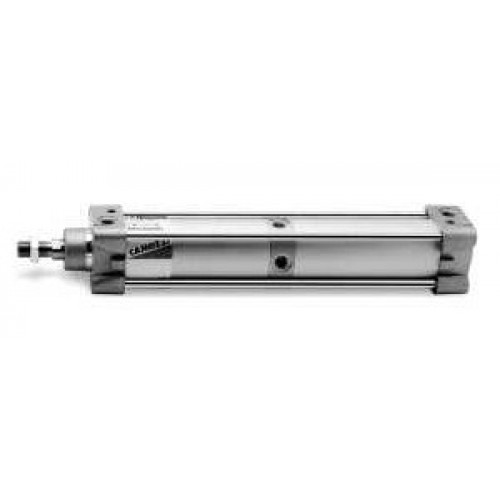

Camozzi International standard cylinders 60N2L050A0800N Cylinders Series 60 - tandem version

Camozzi International standard cylinders 60N2L050A0800N Cylinders Series 60 - tandem version
Type of construction with tie-rods
Operation double-acting, single-acting, tandem. Low friction version: double-acting only.
Materials standard: AL end-blocks and piston, rolled stainless steel AISI 420B rod, anodized AL tube, zinc-plated steel tie-rods and tie-rod nuts, PU seals; low friction: standard materials with NBR piston seals and NBR rod seal (FKM rod seal on request) low temperature: standard materials with chrome plated stainless steel AISI 420B rod, brass rod scraper ring, stainless steel AISI 303 nuts, stainless steel AISI 420B tie-rods, PU piston seals and NBR rod seal
Type of mounting with tie-rods, with front / rear flange, foot mounting, with centre / front / rear / swivel trunnion
Strokes min - max 10 ÷ 2500 mm
Operating temperature standard and low friction: 0°C ÷ 80°C (with dry air - 20°C) low temperature (-40°C version): -40°C ÷ 60°C (with dry air -40°C) low temperature (-50°C version): -50°C ÷ 60°C (with dry air -50°C)
Operating pressure 1 ÷ 10 bar (standard and low temperature); 0,1 ÷ 10 bar (low friction)
Speed 10 ÷ 1000 mm/sec, no load (standard and low temperature); 5 ÷ 1000 mm/sec, no load (low friction)
Fluid filtered air, without lubrication. For standard versions only: if lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.
Code Title Type Operation Stroke (mm) Diameter (mm)
60M2L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 25 50
60M2L050A0050N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 50 50
60M2L050A0080N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 80 50
60M2L050A0100N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 100 50
60M2L050A0125N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 125 50
60M2L050A0150N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 150 50
60M2L050A0160N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 160 50
60M2L050A0200N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 200 50
60M2L050A0250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 250 50
60M2L050A0300N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 300 50
60M2L050A0320N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 320 50
60M2L050A0400N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 400 50
60M2L050A0500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 500 50
60M3L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 25 50
60M3L050A0050N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 50 50
60M3L050A0080N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 80 50
60M3L050A0100N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 100 50
60M3L050A0125N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 125 50
60M3L050A0150N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 150 50
60M3L050A0160N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 160 50
60M3L050A0200N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 200 50
60M3L050A0250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 250 50
60M3L050A0300N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 300 50
60M3L050A0320N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 320 50
60M3L050A0400N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 400 50
60M3L050A0500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 500 50
60M4L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 25 50
60M4L050A0050N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 50 50
60M4L050A0080N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 80 50
60M4L050A0100N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 100 50
60M4L050A0125N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 125 50
60M4L050A0150N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 150 50
60M4L050A0160N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 160 50
60M4L050A0200N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 200 50
60M4L050A0250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 250 50
60M4L050A0300N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 300 50
60M4L050A0320N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 320 50
60M4L050A0400N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 400 50
60M4L050A0500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 500 50
60M5L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 25 50
60M5L050A0050N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 50 50
60M5L050A0080N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 80 50
60M5L050A0100N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 100 50
60M5L050A0125N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 125 50
60M5L050A0150N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 150 50
60M5L050A0160N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 160 50
60M5L050A0200N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 200 50
60M5L050A0250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 250 50
60M5L050A0300N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 300 50
60M5L050A0320N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 320 50
60M5L050A0400N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 400 50
60M5L050A0500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 500 50
60M6L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 25 50
60M6L050A0050N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 50 50
60M6L050A0080N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 80 50
60M6L050A0100N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 100 50
60M6L050A0125N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 125 50
60M6L050A0150N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 150 50
60M6L050A0160N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 160 50
60M6L050A0200N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 200 50
60M6L050A0250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 250 50
60M6L050A0300N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 300 50
60M6L050A0320N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 320 50
60M6L050A0400N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 400 50
60M6L050A0500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting, through-rod 500 50
60N2L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 25 50
60N2L050A0050N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 50 50
60N2L050A0080N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 80 50
60N2L050A0100N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 100 50
60N2L050A0125N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 125 50
60N2L050A0150N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 150 50
60N2L050A0160N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 160 50
60N2L050A0200N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 200 50
60N2L050A0250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 250 50
60N2L050A0300N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 300 50
60N2L050A0320N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 320 50
60N2L050A0400N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 400 50
60N2L050A0500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 500 50
60N2L050A0600N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 600 50
60N2L050A0700N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 700 50
60N2L050A0800N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 800 50
60N2L050A0900N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 900 50
60N2L050A1000N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 1000 50
60N2L050A1250N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 1250 50
60N2L050A1500N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 1500 50
60N2L050A1750N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 1750 50
60N2L050A2000N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 2000 50
60N3L050A0025N Cylinders Series 60 - tandem version Tie-rods cylinders - Tandem double-acting 25 50
