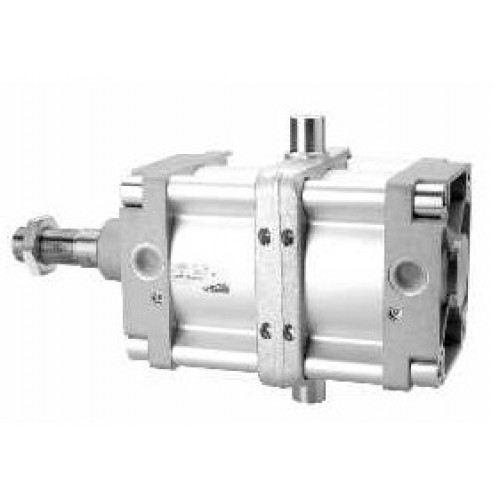

Camozzi International standard cylinders 41M2P200F0050 Cylinders Series 41 with centre trunnion Mod. F
| Type of construction | with tie-rods |
| Operation | double-acting |
| Materials | AL end blocks and piston, rolled stainless steel AISI 420B piston rod, zinc-plated steel piston rod nut, anodized AL-profile tube, zinc-plated steel tie-rods and tie-rod nuts, NBR rod - piston - cushion seals |
| Mounting | with tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination |
| Strokes min - max | 10 ÷ 2500 mm |
| Operating temperature | 0°C ÷ 80°C (with dry air - 20°C) |
| Operating pressure | 1 ÷ 10 bar |
| Speed | 10 ÷ 500 mm/sec (without load) |
| Fluid | filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted. |
| Code | Title | Type | Operation | Stroke (mm) | Diameter (mm) |
| 41M2P200F0050 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 50 | 200 |
| 41M2P200F0100 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 100 | 200 |
| 41M2P200F0200 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 200 | 200 |
| 41M3P200F0050 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 50 | 200 |
| 41M3P200F0100 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 100 | 200 |
| 41M3P200F0200 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 200 | 200 |
| 41M4P200F0050 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 50 | 200 |
| 41M4P200F0100 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 100 | 200 |
| 41M4P200F0200 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 200 | 200 |
| 41M5P200F0050 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 50 | 200 |
| 41M5P200F0100 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 100 | 200 |
| 41M5P200F0200 | Cylinders Series 41 with centre trunnion Mod. F | Profile cylinders with centre trunnion | double-acting | 200 | 200 |
