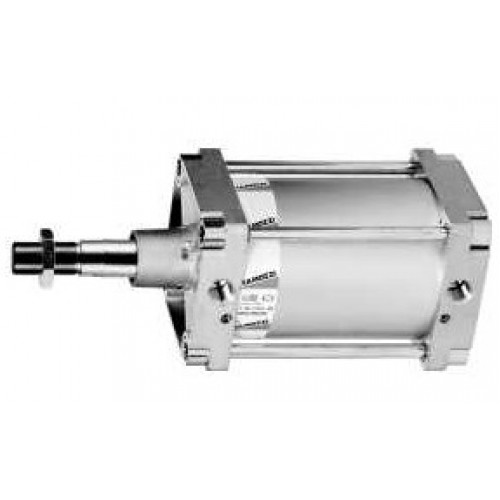

40M2L160A0050 Cylinders Series 40

40M2L160A0050 Cylinders Series 40
Series general data

Type of construction with tie-rods
Operation double-acting
Materials AL end blocks and piston, rolled stainless steel AISI 420B (Ø 160-200 mm) or chrome plated steel (Ø250-320 mm) piston rod, zinc-plated steel piston rod nut, anodized AL tube, zinc-plated steel tie-rods and tie-rod nuts, NBR-PU rod - piston - cushion seals
Mounting with tie-rods, front flange, rear flange, feet, centre trunnion, front and rear trunnion, swivel combination
Strokes min - max 10 ÷ 2500 mm
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar
Speed 10 ÷ 500 mm/sec (without load)
Fluid

filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should never be interrupted.

Code  Title Type Version  Operation    Diameter (mm)  Stroke (mm)  Rod seal
40M2L160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M2L160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M2L160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M2L160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M2L160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M2L160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M2L160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M2L160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M2L160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M2L160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M2L160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M2L160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M2L160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M2T160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M2T160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M2T160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M2T160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M2T160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M2T160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M2T160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M2T160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M2T160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M2T160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M2T160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M2T160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M2T160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M3L160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M3L160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M3L160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M3L160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M3L160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M3L160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M3L160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M3L160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M3L160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M3L160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M3L160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M3L160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M3L160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M3T160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M3T160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M3T160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M3T160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M3T160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M3T160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M3T160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M3T160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M3T160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M3T160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M3T160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M3T160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M3T160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M4L160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M4L160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M4L160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M4L160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M4L160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M4L160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M4L160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M4L160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M4L160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M4L160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M4L160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M4L160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M4L160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M4T160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M4T160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M4T160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M4T160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M4T160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M4T160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M4T160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M4T160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M4T160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M4T160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M4T160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M4T160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M4T160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M5L160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M5L160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M5L160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M5L160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M5L160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M5L160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M5L160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M5L160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M5L160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M5L160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M5L160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M5L160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M5L160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
40M5T160A0050  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 50 NBR
40M5T160A0075  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 75 NBR
40M5T160A0080  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 80 NBR
40M5T160A0100  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 100 NBR
40M5T160A0125  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 125 NBR
40M5T160A0150  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 150 NBR
40M5T160A0160  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 160 NBR
40M5T160A0200  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 200 NBR
40M5T160A0250  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 250 NBR
40M5T160A0300  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 300 NBR
40M5T160A0320  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 320 NBR
40M5T160A0400  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 400 NBR
40M5T160A0500  Cylinders Series 40 Tie-rods cylinders standard double-acting 160 500 NBR
