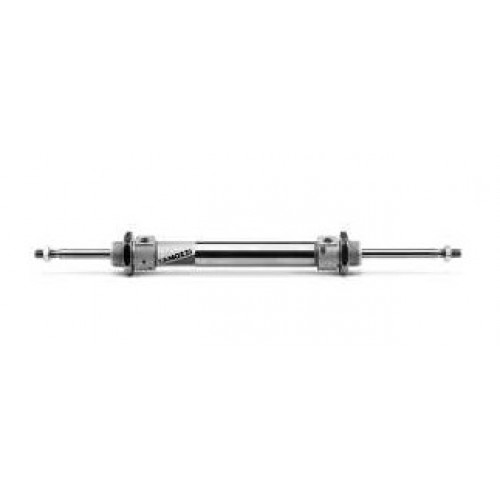

25N3A16A125 Minicylinders Series 16, 24 and 25 - through-rod

25N3A16A125 Minicylinders Series 16, 24 and 25 - through-rod
Series general data




Type of construction crimped
Operation single-acting and double-acting
Materials anodized aluminium end-caps - stainless steel barrel and rod, aluminium piston - NBR/PU seals, other parts: see the coding example
Brackets rod end - flange - feet - trunnion
Stroke min - max Series 16 ø 8 ÷ ø 10: 10 - 250 mm / Series 16: ø 12: 10 - 300 mm / Series 24 & 25 ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm
Bores Series 16: ø 8, 10, 12 / Series 24 & 25: ø 16, 20, 25
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting)
Fluid filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.
Speed

10 ÷ 1000 mm/sec (without load)



Code  Title  Type  Operation  Stroke (mm)  Diameter (mm)
25N3A16A125 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 125 16
25N3A16A160 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 160 16
25N3A16A200 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 200 16
25N3A16A250 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 250 16
25N3A16A300 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 300 16
25N3A16A320 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 320 16
25N3A16A400 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 400 16
25N3A16A500 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 500 16
24N3A16A010 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 10 16
24N3A16A025 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 25 16
24N3A16A040 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 40 16
24N3A16A050 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 50 16
24N3A16A080 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 80 16
24N3A16A100 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 100 16
24N3A16A125 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 125 16
24N3A16A160 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 160 16
24N3A16A200 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 200 16
24N3A16A250 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 250 16
24N3A16A300 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 300 16
24N3A16A320 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 320 16
24N3A16A400 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 400 16
24N3A16A500 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 500 16
24N7A16A010 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders single-acting, through-rod 10 16
24N7A16A025 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders single-acting, through-rod 25 16
24N7A16A040 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders single-acting, through-rod 40 16
24N7A16A050 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders single-acting, through-rod 50 16
25N3A16A010 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 10 16
25N3A16A025 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 25 16
25N3A16A040 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 40 16
25N3A16A050 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 50 16
25N3A16A080 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 80 16
25N3A16A100 Minicylinders Series 16, 24 and 25 - through-rod Minicylinders double-acting, through-rod 100 16
