MODEL AP

DOUBLE PILOT

MODEL AP

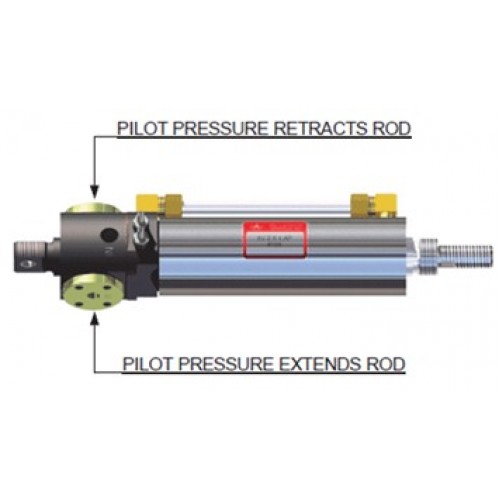

This model incorporates a 4-way Double Pressure Pilot Valve. A
momentary or maintained pilot pressure applied to one side of the valve
will move the rod its full stroke. The rod will remain in that position under
pressure until a pilot pressure is applied to the other side, which will
cause the rod to return to its original position. If a maintained pilot
pressure is applied, it must be released before the other pilot pressure is
applied. Pilot pressure must be at least 25% of the operating pressure.

Bore Sizes Available: 1-1/8”, 1-1/2”, 2”, 2-1/2”, 3”, 4” & *5”.

* 5” BORE AVAILABLE-Consult Factory for Details.
