MODEL VAR AUTOMATIC RETURN

SINGLE PILOT

MODEL VAR AUTOMATIC RETURN

Models incorporate a 4-way Double Bleed Pilot Valve. A momentary
(NOT continuous) actuation of Bleeder Valve is required to move the rod
its full stroke. Upon reaching its FULL stroke, the rod will automatically
return to its original position.

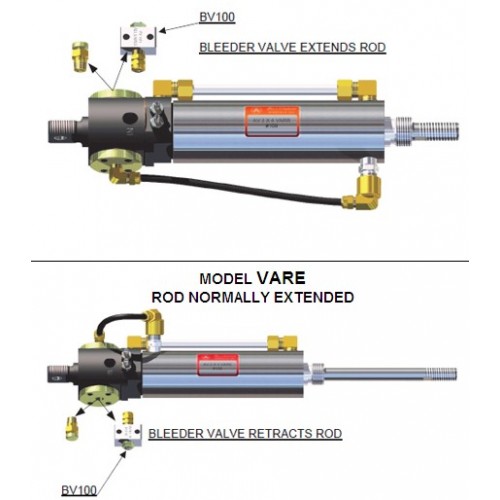

Models can be supplied with the rod normally retracted (manual bleed to
extend rod) or normally extended (manual bleed to retract rod). Due to
internal construction and application requirements, there can be a loss
of approximately 1/8” to 1/4” of stroke.



Bleeder Valve Model BV100 is supplied on these models.

Bore Sizes Available: 1-1/2“, 2”, 2-1/2”, 3” & 4”.
