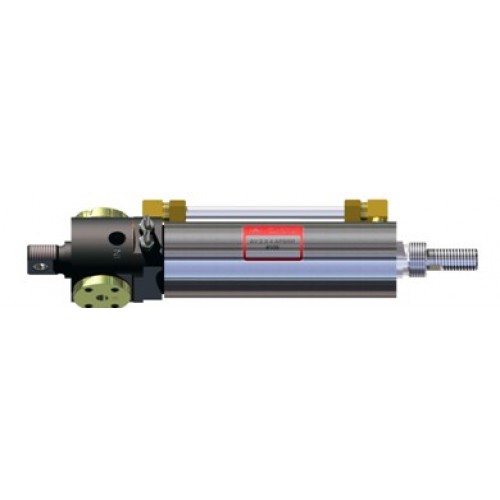

MODEL APSR

SINGLE PILOT

MODEL APSR

Models incorporate a 4-way Single Pressure Pilot Valve. A continuous
pilot pressure applied to “IN” side of valve will move rod its full stroke.
When the pilot pressure is released, the rod will return to its original
position. Pilot pressure is normally supplied through an optional
N.C. Valve.



Models can be supplied with the rod normally retracted (pilot pressure to
extend rod) or normally extended (pilot pressure to retract rod). The pilot
pressure must be at least 75% of the operating pressure.

Bore Sizes Available: 1-1/8“, 1-1/2“, 2”, 2-1/2“, 3”, 4” & *5”.


* 5” BORE AVAILABLE-Consult Factory for Details.
