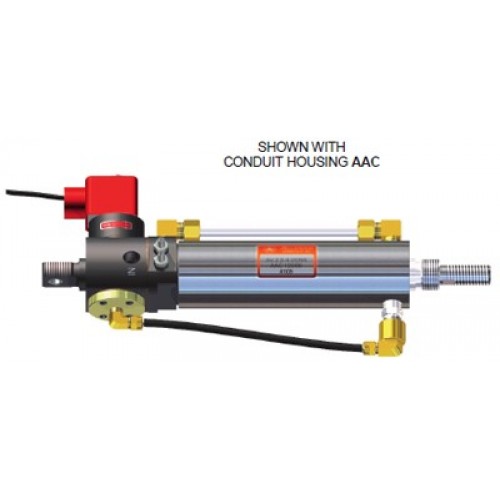

ROD NORMALLY RETRACTED MODEL VERR

SINGLE SOLENOID

MODEL VER AUTOMATIC RETURN

Models incorporate a 4-way Single Solenoid Double Bleed Pilot Valve.
A momentary (NOT continuous) electrical contact is required to move
the rod its full stroke. Upon reaching its FULL stroke, the rod will
automatically return to its original position.



Models can be supplied with the rod normally retracted (electrical
contact will extend rod) or normally extended (electrical contact will retract rod).

The standard solenoid operator is the AAS splice box housing.



Due to internal construction and application requirements, there can
be a loss of approximately 1/8” to 1/4” of stroke.

Bore Sizes Available: 1-1/2”, 2”, 2-1/2”, 3”, 4” & *5”.
Voltages: 12, 24, 120 & 240/60 and 6, 12 & 24VDC
are standard.

* 5” BORE AVAILABLE-Consult Factory for Details.
