TANDEM:

TANDEM:
TYPE: ET SINGLE ENDED
TYPE: ETD DOUBLE ENDED

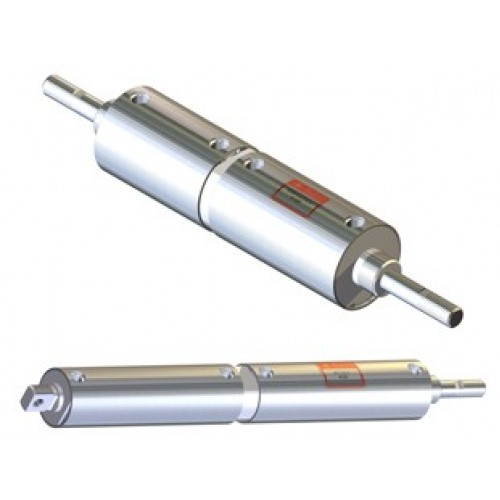

The basic construction of these Cylinders is identical to Type “E” and feature
two Cylinders in tandem having two pistons mounted on one common rod.
Pneumatic operation with hydraulic control can be obtained by operating the
rear Cylinder pneumatically and filling the front Cylinder with oil and piping its
ports in series using a flow control valve. The output force of a single Cylinder
can be almost doubled using a Tandem Cylinder and piping both rear ports
together and both front ports together, which will apply the working pressure to
both Cylinders at the same time. This is particularly useful when space
limitations preclude the use of large bore Cylinders, and the force required is
greater than that supplied by smaller bore units.
Bore Sizes Available: 1-1/2", 2", 2-1/2", 3" & 4”.
Maximum Stroke Available:
Type "ET"      : 60”.
TType "ETD" : 40”.
