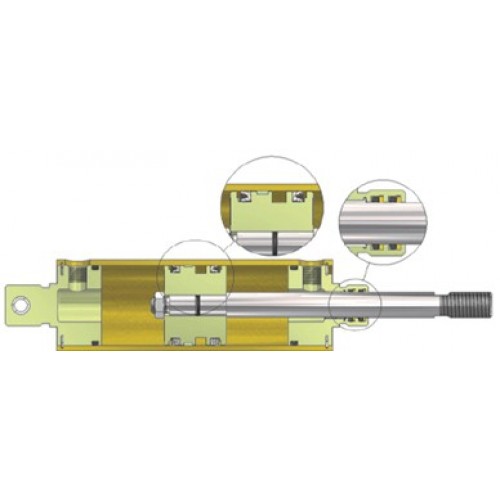

BASIC CONSTRUCTION (DOUBLE ACTING) - TYPE E SINGLE ENDED

TYPE E SINGLE ENDED : Type “E” Cylinders are constructed using
Block-Vee Seals and include double rod seals in the front head except
on the 7/8” & 1-1/8” Bores. A heavy-duty wear strip (bearing) on the
piston minimizes friction and piston seal wear, and side load conditions
prevents metal-to-metal contact. These Cylinders are generally used
on low pressure hydraulics and where side load conditions are
present.
Pressure Rating: 200 P.S.I. Pneumatic, 500 P.S.I. Hydraulic.
Breakaway: Approximately 10 to 15 P.S.I.
Bore Sizes Available: 7/8”, 1-1/8”, 1-1/2”, 2”, 2-1/2”, 3”, 4” & 5*.
*5” BORE AVAILABLE-Consult Factory for Details.
