Position Feedback

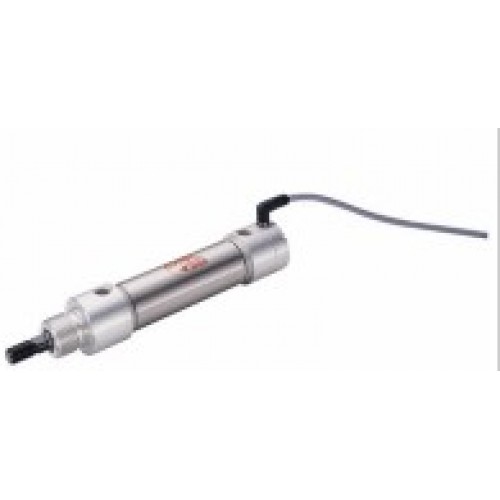

The PFC provides continuous position sensing in a lightweight, small bore air cylinder.  It can be used for measuring and guaging, positioning, and "on-the-fly" applications.  It is available with or without a rod lock.  Combine the PFC with the Bimba Pneumatic Control System (PCS), Digital Panel Meter (DPM), or the Electronic Controller to maximize performance.

• Bore sizes:  1-1/16", 1-1/2", 2", 2-1/2", 3"
• Standard stroke lengths:  1”, 2”, 4”, 6”, 8”, 12”, 18”, 24”
• Options:  bumpers, extra rod extension, low friction, plug connector, mounting
• Infinite resolution, linearity of ± 1% of full stroke, ± 0.001" mechanical repeatability
• Choice of standard 6" lead wire or 3-pin connector
• Rear head cap can be rotated for optimal positioning of lead or connector
