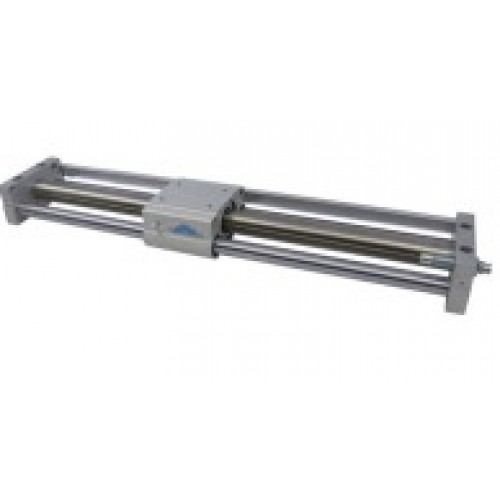

Ultran® Rodless Slide
The Ultran® Slide features built in guides for self-guided motion with about 50% space savings over conventional cylinders. These actuators are pre-lubricated at the factory, which greatly increases cylinder life. They are designed to handle side and moment loads. These load carrying capabilites can be enhanced by ordering external shock absorbers.
- Bore sizes: 5/16", 7/16", 9/16", 3/4", 7/8", 1-1/16", 1-1/4", 1-1/2", 2"
- Options include stroke adjustment (both ends or one end)
- Accessories include shock absorbers, stroke adjustments, and stop collars
- Temperature range: 0°F to 170°F
- Optional bumpers to reduce noise
- Midstroke and end of stroke position sensing available
