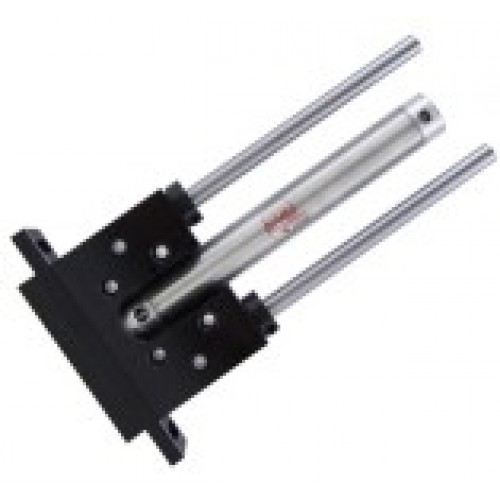

Ball Bearing Thruster

Rated to 250 psi, Bimba's T series thruster is constructed of a 304 stainless steel body, high-strength aluminum alloy porting ends, 303 stainless steel piston rods, Buna N "U" cup seals, sintered bronze rod guide bushing, and more.  High temperature option V seals rated for higher temperature applications are also available.

• Bore sizes: 9/16", 3/4", 1-1/16", 1-1/2", 2", 2-1/2", 3"
• Series standard stroke lengths range from 1” increments to 6” and 1” increments to 12”
• Stroke lengths beyond maximum are available
• Options:  internal bumpers, external bumpers on the guide shafts, cushions, and more
• Alternate seal materials and lubricants for a wide variety of applications
• The rear of the cylinder must be supported in horizontal applications
