Tough Duty

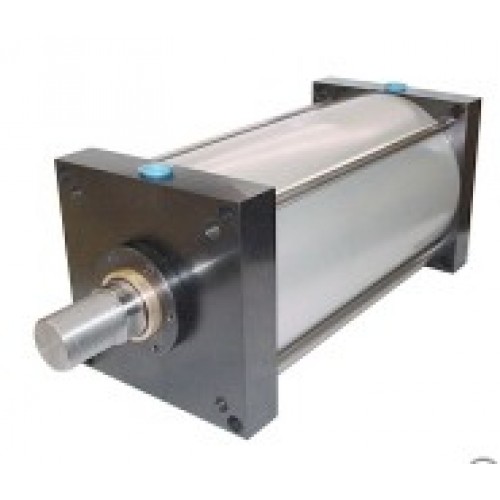

TD cylinders feature bumper piston seals, reducing machine vibration and allowing higher velocities to be achieved while reducing noise.  Standard fixed cushions provide tamper free operation and guarantee cushion function at the end of each full stroke.  A PTFE piston wear band providing low friction and long life operation in demanding applications is also standard.

• Bore sizes:  1-1/2", 2", 2-1/2", 3-1/4", 4", 5", 6", 8"
• The TD Tough-Duty series can be further customized by adding additional options
• Standard and oversized rods available
• Same features as TA series with addition of bumper piston seals and fixed cushions
• Adjustable cushions optional for precise adjustments and maximum performance
• Permanent lubrication design provides outstanding service life.  Click here to learn more!
•
