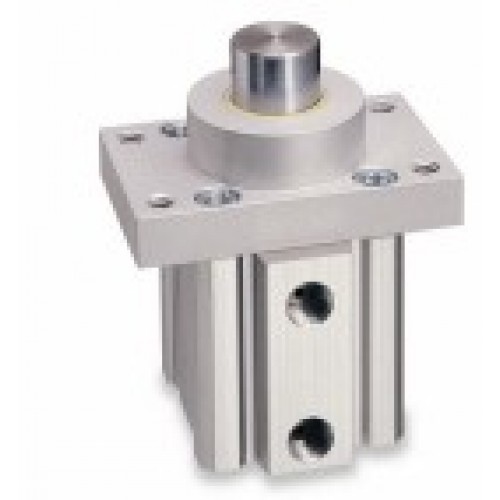

Stopper Cylinder
The stopper cylinder is a modified EF-I cylinder designed specifically for conveyor stopping applications. It features a heavy-duty mounting plate, and the cylinder's rod/bearing design was developed specifically to withstand side impact loading. It is available in two double acting models, including a double acting failsafe spring extend design.
- Standard U.S. customary (inch) threads for ports, mounting, and rods
- Stroke lengths available: 15, 20, 25mm
- Maximum Operating Pressure: 140 PSI
- Operating Temperature: 15° to 160°F (15° - 225° with -V option)
- Lubrication: PTFE grease
- Cylinder Body: Aluminum, hard coat with PTFE
