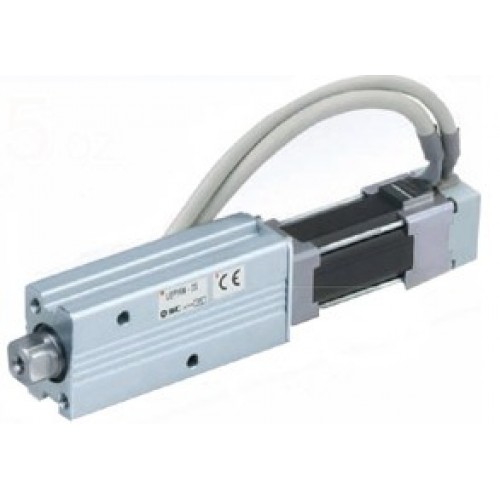

SMC Electric Cylinders LEPS, Electric Actuator Miniature Slide Table Type, Step Motor (Servo/24VDC)
SMC's LEP series of miniature electric actuators offer a high level of precision, accuracy and repeatability in a compact and lightweight design. Small enough to fit in the palm of your hand, the miniature rod (LEPY) and miniature slide table (LEPS) come with selectable high pushing force, and/or compact and lightweight motor options. By placing the motor in the axial direction, and reducing the width to 20.5mm and 21mm respectively, both models offer an ideal space saving solution. The LEP series can be adapted for any application with up to 64 positioning points, and positioning repeatability of ± 0.05mm as standard. The manual override screw allows the LEP series to be easily controlled since adjustments are possible with the power OFF.
- Miniature slide table type LEPS
- Compact and lightweight
- Ability to mount from various directions
- Adjustable speed and positioning
- Compatible encoders: LECP6, LECP1
- RoHS & CE Compliant
