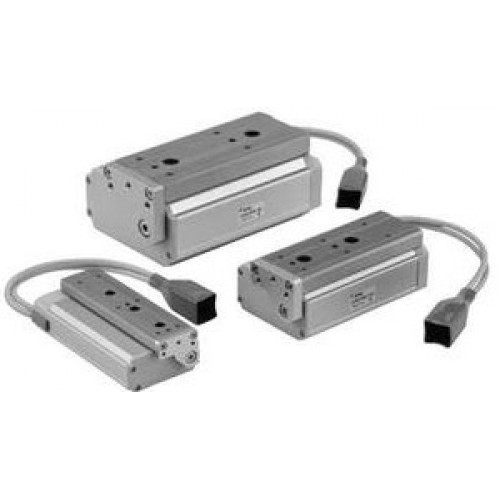

SMC Electric Cylinders LESH, Electric Actuator, Slide Table Type

The LES series electric slide table actuator uses a compactly-integrated, recirculating linear guide for high rigidity and high precision.  When the LES is ordered with the controller, initial data of the actuator is preset in the controller allowing start-up in a short time with the "easy mode".  Two types of built-in motors (step or servo) are available. The series can be top or bottom mounted.  In addition, the LES series is available in an optional symmetric style (reversed table and cable positions from the standard model).

• Reduced tact time - 5,000 mm/s² max. acceleration, 400 mm/s max. speed
• Positioning repeatability: within ±0.05 mm
• Positioning pattern outputs: 64 points
• Compact and space saving
• Applicable strokes: 50, 75, 100, 150
