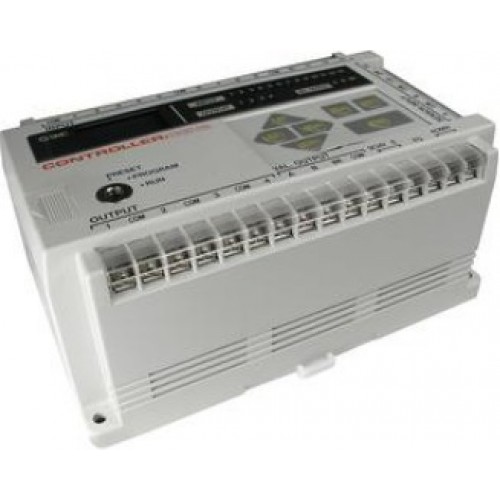

SMC Specialty & Engineered Cylinder CEU2, Controller for CE2 Series

The CE2 series cylinder, through prediction control and a learning feature, is capable of highly reproducible positioning (stopping accuracy of ± 0.5mm). The brake mechanism, employing a combination spring and air pressure locking system, allows locking on either of the cylinder's reciprocating strokes. The CE2 measurement function, utilizing a magnetic scale rod and built-in detection head, provides a minimum unit of measure of 0.1mm.

• DIN rail mountable
• NPN or PNP control output
• Input Signal: start, return to origin, program selection (4 bit),
  hold, emergency stop, input origin, automatic manual,
  manual: extended, retracted (2 bit), reset
• Output Signal: completion of positioning signal,
  completion to figure out origin signal, program END,
  abnormal signal
