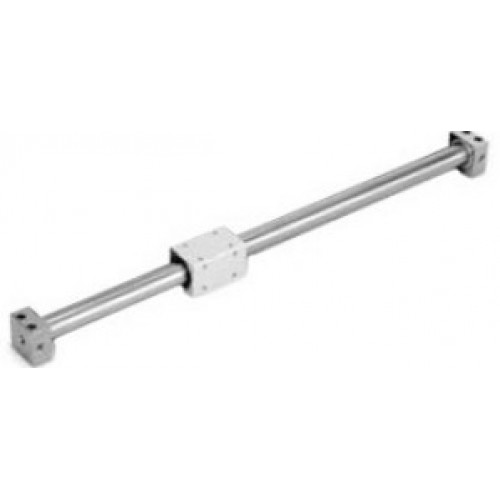

SMC Specialty & Engineered Cylinder clean room series 12-CY3R, Magnetic Rodless Cylinder, Direct Mount

With no external leakage, the CY series can be used in many diverse environments, including Clean Room. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

• Magnetic rodless cylinder
• Bore sizes (mm): 15, 20, 25, 32, 40
• Stroke size available in 1mm intervals
• Ambient temperature: -10 to 60°C
• Maximum operating pressure: 0.7MPa
• Direct mount type
• Clean Room series
