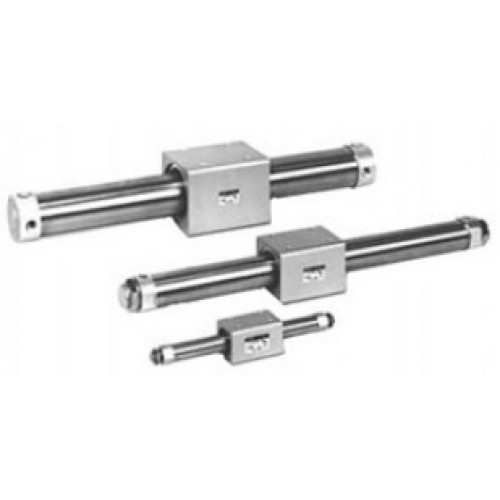

SMC Specialty & Engineered Cylinder clean room 12-CY3B, Magnetic Rodless Cylinder

With no external leakage, the CY series can be used in many diverse environments, including Clean Room. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.

• Magnetically coupled rodless cylinder
• Bore sizes (mm): 15, 20, 25, 32, 40
• Stroke size available in 1mm intervals
• Ambient temperature: -10 to 60°C
• Maximum operating pressure: 0.7MPa
• Basic type
• Clean Room series
