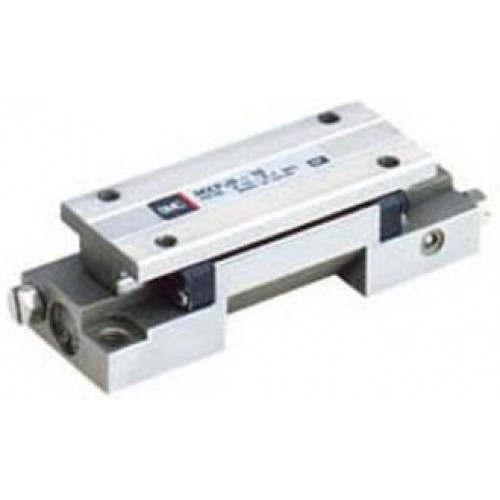

SMC Specialty & Engineered Cylinder clean room 11/22-MXPJ6, Air Slide Table
The MXPJ6 is ideal for clean room applications and those that require high precision movement in short travel situations. The precision slide table has a machined guide with very tight tolerances that operates in conjunction with highly accurate recirculating ball bearings. This slide is capable of achieving parallelism within 0.02mm and non-rotation accuracy as low as 0.03 degrees. Two of the mounting surfaces allow work to be held to a tolerance +/-0.05mm plus the tolerance of the work piece. The slide contains two pistons that operate independently to supply the movement of the actuator.
- Precision air slide table, clean room series
- Bore size: 6mm
- Strokes: 5mm and 10mm
- With rubber or metal stopper
