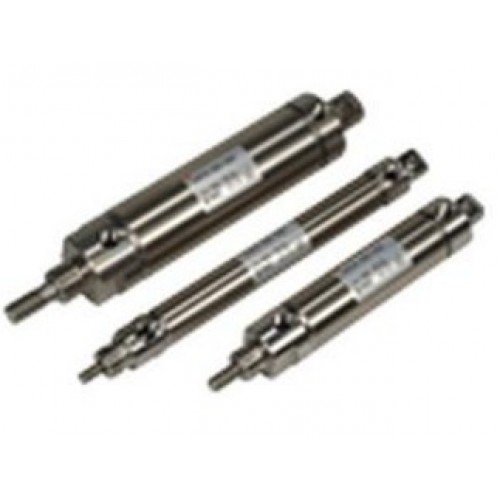

SMC Specialty & Engineered Cylinder NC(D)M, All Stainless Steel Cylinder, Double Acting, Single Rod, X6009

Series NCM stainless steel cylinder offers space savings, high performance, and interchangeability with other stainless steel cylinders. A wear ring extends the seal life and a bronze rod bushing is standard on all bore sizes. The NCM is available in 4 mounting styles (front nose, double end, rear pivot, and block mount) as well as double rod and spring return or spring extend models. The NCM is auto-switch capable without any change in cylinder dimension. Bore sizes range from 7/16" to 2" and standard strokes from 1/2" to 12".

• Corrosion resistant 304 stainless steel exterior components
• 6 bore sizes
• Built-in rod wiper protects interior from contaminants
• Auto switch capable
• Dimensionally interchangeable with standard NCM series
