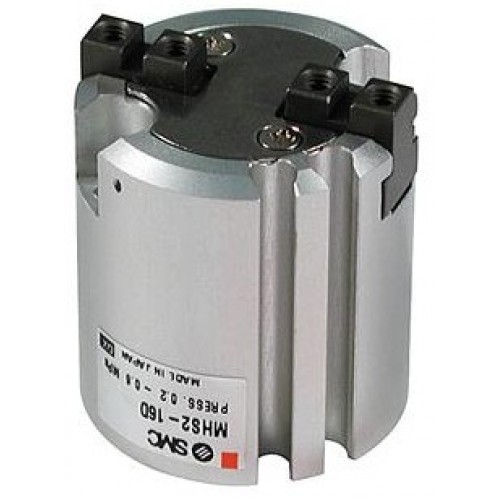

SMC Air Grippers MHS2, Air Gripper, 2 Finger, Parallel Style

The MHS is the latest in the family of rotary operated parallel style grippers. This compact gripper is available in 10 different bore sizes with choices of 2, 3 and 4 fingers which generate gripping forces up to 1270 N. Pinholes are incorporated as standard, facilitating accurate mounting which is achieved through either body tapped or through-hole mounting. By using a wedge cam construction to attach the fingers to the rotary actuator a more compact design is achieved, as well as high repeatability of 0.01 mm. Auto switches can be simply attached via the standard built-in grooves

• 2 finger parallel style air gripper
• Two fingers
• Bore sizes: 16, 20, 30, 32, 40, 50, 63 (mm)
• Thirteen different switches in .5mm or 3mm lead wire lengths
